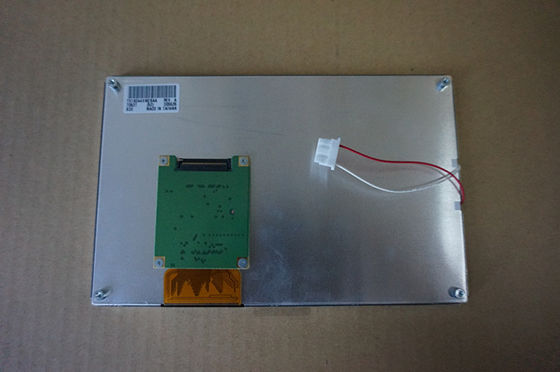

Product Details:
|
| MODEL NUMBER: | TX18D44VM2BAA | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | TFT LCD Panel LVDS,LVDS TFT LCD Module,VGA Touch Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TX18D44VM2BAA | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 70/70/65/65 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9480K | 262K (6-bit) | X:0.280; Y:0.300 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 155.5(H) × 93.44(V) | 165(H) × 106(V) | 4.9/8.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Rear mounting holes (4-M2) on pole | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 128g (Typ.) | ||||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 2.06W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S9P | Array | 40K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 12.0±0.5V | 108mA (Typ.) | 1.3W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLE-3PINS-ANC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230mA (Typ.) | 0.76W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration  |
| JAE | FA5B040HP1 | 0.5 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×106(H)×8.3(D) mm, viewing area size of 155.5(W)×93.44(H) mm, net weight of 128g (Typ.). As a TN, Normally White, Transmissive LCM product, TX18D44VM2BAA can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. TX18D44VM2BAA utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
