7.0in 800×480 640nits 133PPI Square Tft Display TX18D205VM0BPA

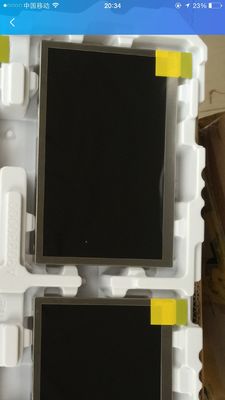

Large Image : 7.0in 800×480 640nits 133PPI Square Tft Display TX18D205VM0BPA

Product Details:

Place of Origin:	JAPAN
Brand Name:	KOE
Certification:	ISO9001
Model Number:	TX18D205VM0BPA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

7.0in 800×480 640nits 133PPI Square Tft Display TX18D205VM0BPA

Description

MODEL NUMBER:	TX18D205VM0BPA	BRAND:	KOE
SIZE:	7.0 Inch	RESOLUTION:	800(RGB)×480 (WVGA) 133PPI
BRIGHTNESS:	640 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C
High Light:	640nits Square Tft Display , 133PPI Square Tft Display , 7.0in 800×480 Tft Lcd Screen

KOE TX18D205VM0BPA Application Details

Basic Info :	Panel Brand Panel Model TX18D205VM0BPA Diagonal Size 7.0" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -30 ~ 80 °C Storage Temp. -40 ~ 90 °C RoHS State Vibration Rating 5.0G (49.0 m/s²)
Specific Features :

KOE TX18D205VM0BPA Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×480, WVGA Dot Pitch 0.0635×0.1905 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :	Display Area 152.4×91.44 mm (H×V) Bezel Area - Outline Dim. 167.7×109.5 mm (H×V) Outline Depth 10.6/21.9 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 15:9 (H:V) Shape Style
Touch Screen :	Touch Points - TP Signal - TP Controller Without touch controller Touchscreen 4-wire Resistive Touch, F/G
Holes & Brackets :	Rear mounting holes (4-M3)
Other Features :	Weight 266g (Typ.) Surface Antiglare

KOE TX18D205VM0BPA Optical Details

Basic Information :	Brightness 640 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode IPS, Normally Black, Transmissive Viewing Direction Symmetry Response Time 30 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.320; Wy:0.350 Color Numbers 262K (6-bit) Color Temperature 6022K Uniformity 1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 96% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

KOE TX18D205VM0BPA Electronics Details

Frame Frequency :	60Hz Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	4.38W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

KOE TX18D205VM0BPA Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 70K(Typ.) (Hours) Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Connector Position - Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM02(8.0)B-BHS-1-TB 8.0 mm 2 pins 1 pcs BLE-2PINS-VG
Driver Electrical :	Voltage Input 12.0V (Typ.) Current Input 350/380mA (Typ./Max.) Consumption 4.2W (Typ.)

KOE TX18D205VM0BPA Interface Detail

Signal Systerm :	CMOS (1 ch, 6-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 126/158mA (Typ./Max.) Consumption 0.42W (Typ.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration JAE FA5S040HP1 0.5 mm 40 pins 1 pcs
