Product Details:
|
| MODEL NUMBER: | TX18D11VM1CAA | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | WVGA 133PPI 800 Industrial Lcd Panel,400nits Industrial Lcd Panel,WVGA 800x480 Industrial TFT Display |
||

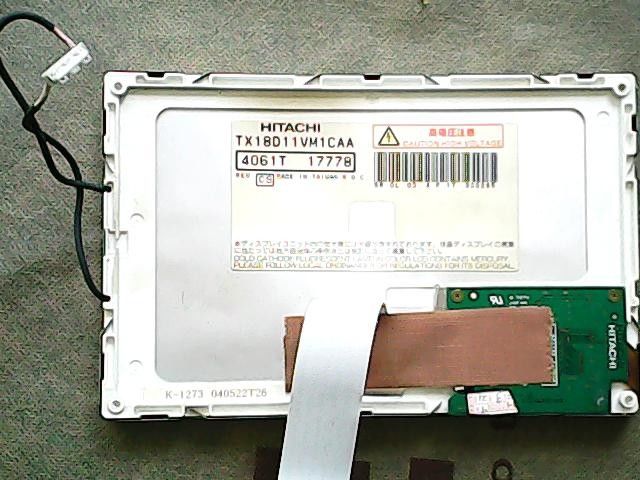

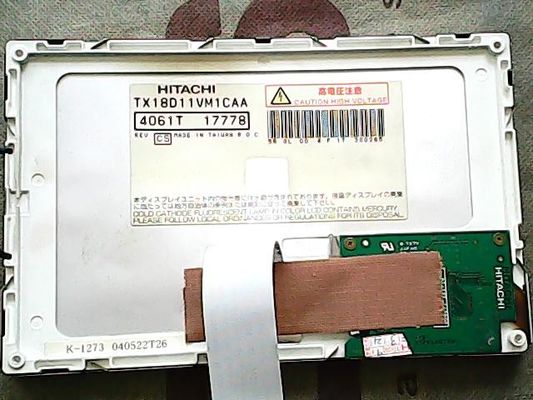

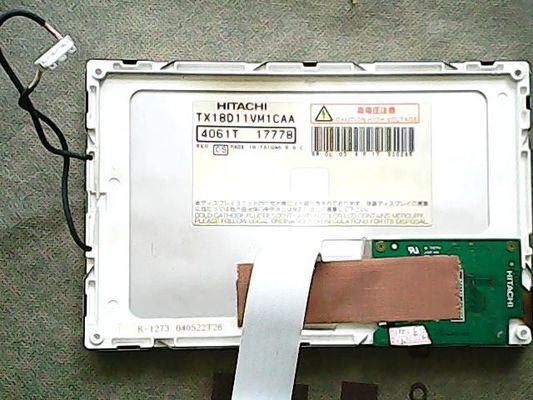

TX18D11VM1CAA is a 7.0" diagonal a-Si TFT-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 2.0G (19.6 m/s²).
HITACHI TX18D11VM1CAA Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TX18D11VM1CAA | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| - | -20 ~ 70 °C | -30 ~ 85 °C | 2.0G (19.6 m/s²) | |
| Designed For : | ||||
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 156.4×95.44 mm | 165×106 mm | 10.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting holes (4 pcs) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 170g (Typ.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/45/60 (Typ.)(CR≥5) | - | 30/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6737K | 262K (6-bit) | X:0.310; Y:0.320 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
