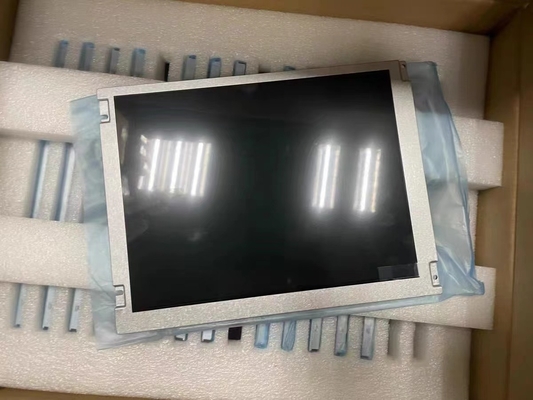

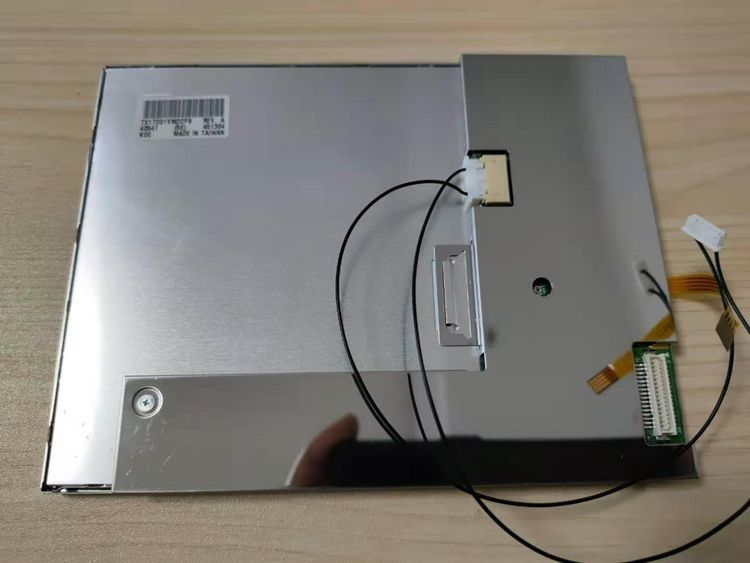

122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB

122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB
122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB

Large Image :  122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB

Product Details:
Place of Origin: JAPAN
Brand Name: HITACHI
Certification: ISO9001
Model Number: TX17D01VM2EAB
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS

122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB

Description
MODEL NUMBER: TX17D01VM2EAB BRAND: HITIACH
SIZE: 6.5 Inch RESOLUTION: 640(RGB)×480 (VGA) 122PPI
BRIGHTNESS: 1000 Cd/m² (Typ.) TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

1000nits TFT LCD Panel

,

6.5inch 640x480 TFT LCD Panel

,

122PPI VGA Tft Lcd Screen

HITACHI TX17D01VM2EAB Application Details

Basic Information :
Brand
122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 0
Model
TX17D01VM2EAB
Type
a-Si TFT-LCD , LCM
Used For
  • 122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 1
  • 122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 2
Screen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 3
Vibration
2.0G (19.6 m/s²)
Typical Features :
  • Ultra High Brightness
  • WLED Backlight
  • Life ≥ 70K hours
  • With LED Driver
  • 180° Reverse
  • Glossy













































HITACHI TX17D01VM2EAB Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.069×0.207 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.207×0.207 (H×V) [122PPI]
Mechanical Size :
Active Area(mm)
132.48(H) × 99.36(V)
Bezel Area(mm)
135.9(H) × 102.8(V)
Outline Dim.(mm)
153(H) × 118(V)
Depth(mm)
9.1 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M2)
Other Spec :
Weight
190g (Typ.)
Treatment
Glare (Haze 0%), Antireflection



























































HITACHI TX17D01VM2EAB Optical Details

Basic Information :
Luminance(cd/m²)
1000 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.300; Wy:0.310
Display Colors
262K (6-bit)
Color Temperature
7525K
White Uniformity
1.43 (Max.)(9 points) 122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 10
1931 Color Gamlt :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
46% coverage
Rec.2020
33% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity

































































HITACHI TX17D01VM2EAB Electronics Details

Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
Total Consumption :
4.56W (Typ.)

HITACHI TX17D01VM2EAB Interface Details

Signal Electrical :
Voltage Supply
3.3V (Typ.)(VDD)
Current Supply
144/172mA (Typ./Max.)
Consumption
0.48W (Typ.)
Signal Type :
CMOS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration 122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 12
HRS
1.0 mm
31 pins
1 pcs
DRGB-31P1C6B-010M

HITACHI TX17D01VM2EAB Backlight Details

Backlight Features :
Type
WLED
Quantity
3S4P
Position
Edge light type
Replacement
-
Shape
-
Life Time
70K(Typ.) Hours
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration 122PPI VGA 6.5inch 640x480 1000nits TFT LCD Panel TX17D01VM2EAB 13
JST
8.0 mm
2 pins
1 pcs
BDE-2PINS-VG
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±0.5V
Current Supply
340±20mA
Consumption
4.08W (Typ.)
