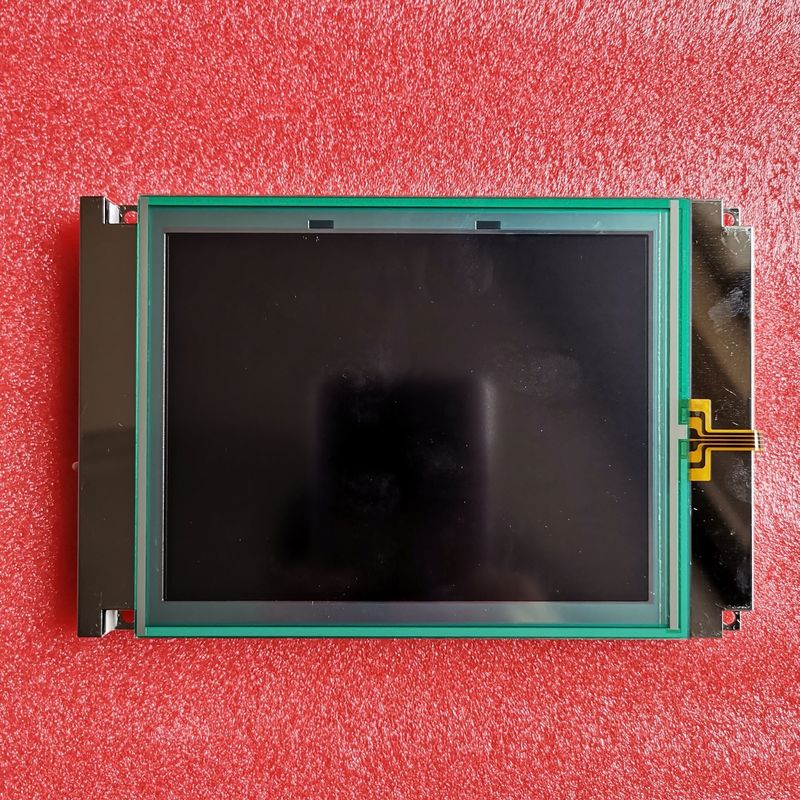

Product Details:
|
| MODEL NUMBER: | TX17D01VM2CAB | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 6.5 Inch | RESOLUTION: | 640(RGB)×480, VGA, 122PPI |
| BRIGHTNESS: | 1000 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -25 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | 640x480 Capacitive TFT Touch Panel,1000cd/M2 Capacitive TFT Touch Panel,VGA 122PPI Tft Lcd Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TX17D01VM2CAB | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -25 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Application : |
|
|||
| Typical Features : |
|
|||
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 132.48×99.36 mm | 135.9×102.8 mm | 153×118 mm | 9.1 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 190g (Typ.) | - | - | ||
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 1000 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/60/80 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7525K | 262K (6-bit) | X:0.300; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 46% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.56W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 70K(Typ.) | 3S4P | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM02(8.0)B-BHS-1-TB(LF)(SN) | 1 pcs | 2 pins | 8.0 mm | BDE-2PINS-VG | |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±0.3V | 340±20mA | 4.08W (Typ.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 144/172mA (Typ./Max.) | 0.48W (Typ.) | ||||
| Voltage for Display Signals : | VSS≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010M | |
