Product Details:
|

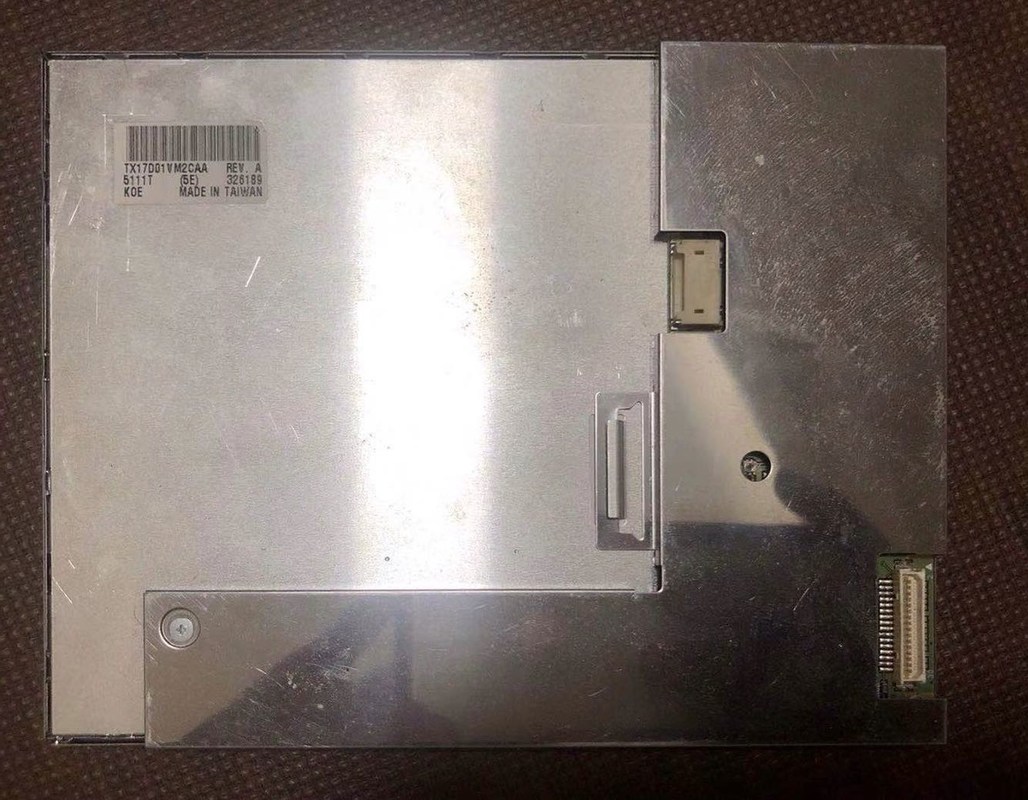

| MODEL NUMBER: | TX17D01VM2CAA | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 5.7 Inch | RESOLUTION: | 640(RGB)×480 (VGA) 122PPI |
| BRIGHTNESS: | 600 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | 172mA Tft Lcd Screen,600nits Tft Lcd Screen,6.5" 640×480 Lcd Display Panels |
||
| Basic Info : | Panel Brand | Panel Model | TX17D01VM2CAA | |
|---|---|---|---|---|
| Diagonal Size | 6.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) | ||
| Specific Features : |
|
|||
HITACHI TX17D01VM2CAA Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.069×0.207 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.207×0.207 mm (H×V) [122PPI] | |
| Mechanical Size : | Display Area | 132.48×99.36 mm (H×V) | Bezel Area | 135.9×102.8 mm (H×V) |
| Outline Dim. | 153×118 mm (H×V) | Outline Depth | 9.1±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Other Features : | Weight | 190g (Typ.) | Surface | - |
| Basic Information : | Brightness | 600 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.310 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7525K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
