Product Details:
|
| MODEL NUMBER: | TX16D11VM2CAC | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 5.7 Inch | RESOLUTION: | 640(RGB)×240, VGA, 109PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | VGA 109PPI Lcd Display Panels,350nits Lcd Display Panels,1.008W Tft Lcd Screen |
||

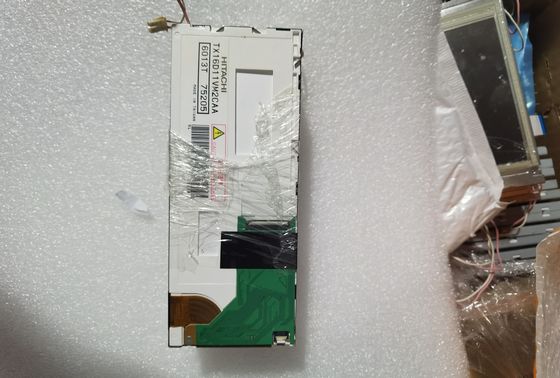

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) TX16D11VM2CAC is a 6.2 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 2.0G (19.6 m/s²).
HITACHI TX16D11VM2CAC Application Details
| Basic Detail : | Manufacturer | Model Name | TX16D11VM2CAC | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.2 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS | ||
| Features : |
|
|||
| Remarks : | HVGA/VGA mode slectable | |||
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 45 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.340; Wy:0.350 | Support Color | 262K (6-bit) |
| Color Temperature | 5201K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 80% coverage |
| Adobe RGB | 61% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×240 [HVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0775×0.224 mm | Pixel Pitch(W×H) | 0.2325×0.224 mm [109PPI] | |
| Physical Size : | Active Viewing | 148.8(W)×53.76(H) mm | Overall Dim. | 173(W)×70(H) mm |
| Bezel Opening | 152.8(W)×57.76(H) mm | Overall Depth | 7.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Other Detail : | Mass | 110g (Typ.) | Surface |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VSS≤VIL≤0.8V; 2.0V≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FA5B040HP1 | 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C6B-420C | |
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S7P | Life | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 84/95mA (Typ./Max.) | Input Voltage | 12.0±0.5V | ||
| Consumption | 1.008W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLE-3PINS-ANC | |
| Backlight Driver : | No | |||||
