TX14D12VM1CPC HITACHI 5.7 inch 320(RGB)×240 320 cd/m² Storage Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

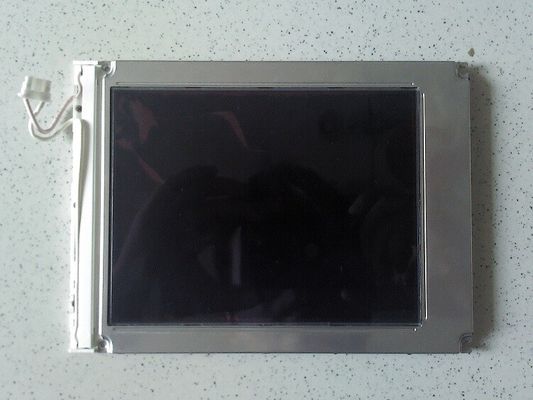

Large Image : TX14D12VM1CPC HITACHI 5.7 inch 320(RGB)×240 320 cd/m² Storage Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	HITACHI
Certification:	ISO9001
Model Number:	TX14D12VM1CPC

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	80USD
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

TX14D12VM1CPC HITACHI 5.7 inch 320(RGB)×240 320 cd/m² Storage Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TX14D12VM1CPC	BRAND:	HITACHI
SIZE:	5.7INCH	RESOLUTION:	320(RGB)×240 [QVGA] 70PPI
BRIGHTNESS:	320 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)
Highlight:	LVDS TFT LCD Panel , High Brightness TFT LCD 149PPI , SVGA 82PPI TFT LCD Panel

HITACHI TX14D12VM1CPC Application Details

Basic Information :

Brand

Model

TX14D12VM1CPC

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

5.7 inch

Alias

Environment :

Storage Temp.

-30 ~ 80 °C

Operating Temp.

-20 ~ 70 °C

RoHS

Vibration

2.0G (19.6 m/s²)

Typical Features :

Remarks :

QVGA/VGA mode selectable

TACHI TX14D12VM1CPC Mechanical Details

Pixel Features :

Resolution

320(RGB)×240, QVGA

Dot Pitch(mm)

0.120×0.360 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.360×0.360 (H×V) [70PPI]

Mechanical Size :

Active Area(mm)

115.2(H) × 86.4(V)

Bezel Area(mm)

119.4(H) × 90.6(V)

Outline Dim.(mm)

131(H) × 102.2(V)

Depth(mm)

12.4 (Typ.)

Outline Features :

Form Style

Flat Rectangle

Shape Style

Aspect Ratio

4:3 (H:V)

Orientation

Landscape type

Touch Panel :

Touch Points

Touch Panel

4-wire Resistive Touch

TP Controller

Without touch controller

Touch Signal

Mounting :

Rear mounting holes (4-Ф2.4)

Other Spec :

Weight

200g (Typ.)

Treatment

Antiglare

HITACHI TX14D12VM1CPC Optical Details

Basic Information :

Luminance(cd/m²)

320 (Typ.)

Contrast Ratio

350:1 (Typ.) (Transmissive)

Viewing Angle

70/70/80/70 (Typ.)(CR≥5)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response(ms)

30 (Typ.)(Tr+Td)

Color Performance :

White Coordinate

Wx:0.360; Wy:0.350

Display Colors

262K (6-bit)

Color Temperature

4481K

White Uniformity

1931 Color Gamlt :

NTSC Ratio

58%

sRGB

81% coverage

Adobe RGB

60% coverage

DCI-P3

60% coverage

Rec.2020

43% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

HITACHI TX14D12VM1CPC Electronics Details

Frame Rate :

60Hz

Reverse Scan :

HITACHI TX14D12VM1CPC Interface Details

Signal Electrical :

Voltage Supply

3.3V (Typ.)(VDD)

Current Supply

65mA (Typ.)(IDD)

Signal Type :

CMOS (1 ch, 6-bit)

Logic Voltage

VSS≤VIL≤0.8V; 2.0V≤VIH≤VDD

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

JAE

FA5B040HP1

0.5 mm

40 pins

1 pcs

DRGB-40P1C6B-430B

HITACHI TX14D12VM1CPC Backlight Details

Backlight Features :

Type

WLED

Quantity

3S7P

Position

Edge light type

Replacement

Shape

Array

Life Time

40K(Min.) Hours

Lamp Electrical :

Voltage Supply

12.0±0.5V

Current Supply

84/91mA (Typ./Max.)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

JST

BHR-03VS-1

4.0 mm

3 pins

1 pcs

BLE-3PINS-ANC

Backlight Driver :
