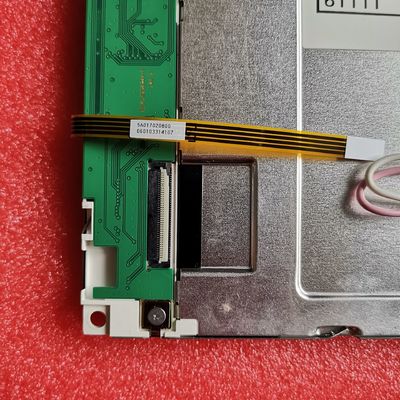

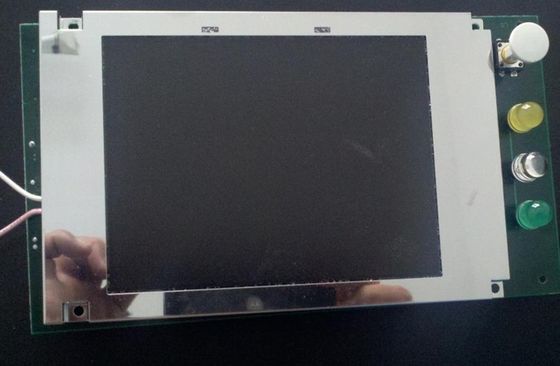

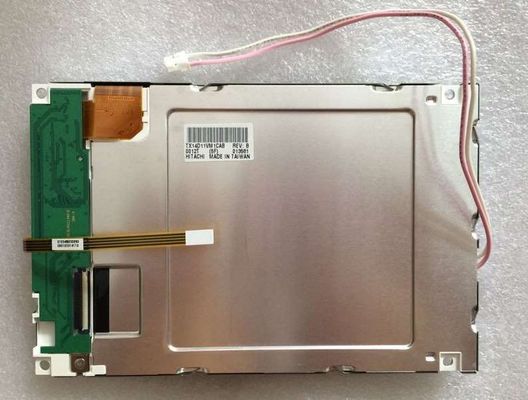

TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY
TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

Large Image :  TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: HITIACH
Certification: ISO9001
Model Number: TX14D11VM1CBB
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TX14D11VM1CBB BRAND: HITIACH
SIZE: 5.7 Inch RESOLUTION: 320(RGB)×240, QVGA, 70PPI
BRIGHTNESS: 600cd/m² (Typ.) TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

LVDS TFT LCD Panel

,

High Brightness TFT LCD 149PPI

,

SVGA 82PPI TFT LCD Panel

HITACHI TX14D11VM1CBB Application Details

Basic Info :
Panel Brand
TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 0
Panel Model
TX14D11VM1CBB
Diagonal Size
5.7"
Application
  • TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 1
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 2
Vibration Rating
2.0G (19.6 m/s²)
Specific Features :
  • Hight Brightness













































HITACHI TX14D11VM1CBB Optical Details

Basic Information :
Brightness
600 cd/m² (Typ.)
Contrast Ratio
350:1 (Typ.) (Transmissive)
Viewing Angle
65/65/70/50 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
45 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.280; Wy:0.290
Color Numbers
262K (6-bit)
Color Temperature
9969K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
83% coverage
Adobe RGB
63% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020

























































HITACHI TX14D11VM1CBB Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON

























OverviewSpecsStocksSuppliersTouch PanelsOEM/ODMRFQsDriver Kits

HITACHI TX14D11VM1CBB Application Details

Basic Info :
Panel Brand
TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 0
Panel Model
TX14D11VM1CBB
Diagonal Size
5.7"
Application
  • TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 1
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 2
Vibration Rating
2.0G (19.6 m/s²)
Specific Features :
  • Hight Brightness

HITACHI TX14D11VM1CBB Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Outline Dim.
119.4×90.6 mm (H×V)
Outline Dim.
167×109 mm (H×V)
Outline Depth
9.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4-Φ3.5)
Other Features :
Weight
165g (Typ.)
Surface
-
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 9 Back to Top

HITACHI TX14D11VM1CBB Optical Details

Basic Information :
Brightness
600 cd/m² (Typ.)
Contrast Ratio
350:1 (Typ.) (Transmissive)
Viewing Angle
65/65/70/50 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
45 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.280; Wy:0.290
Color Numbers
262K (6-bit)
Color Temperature
9969K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
83% coverage
Adobe RGB
63% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 9 Back to Top

HITACHI TX14D11VM1CBB Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON

HITACHI TX14D11VM1CBB Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
-
Replacement
-
Lamp Shape
U shape
Position
Edge light type
Lamp Electrical :
Voltage Input
760V (Typ.)
Current Input
3.0/4.0/6.0mA (Min./Typ./Max.)
Frequency
55KHz (Typ.)
Kick-off Voltage
1300V (Min.)(Ta=5℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration TX14D11VM1CBB HITACHI 5.7"320(RGB)×240 600 cd/m² Storage Temp.: -30 ~ 80 ° INDUSTRIAL LCD DISPLAY 26
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL

























































HITACHI TX14D11VM1CBB Mechanical Details





Pixel Features :

Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Outline Dim.
119.4×90.6 mm (H×V)
Outline Dim.
167×109 mm (H×V)
Outline Depth
9.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4-Φ3.5)
Other Features :
Weight
165g (Typ.)
Surface
