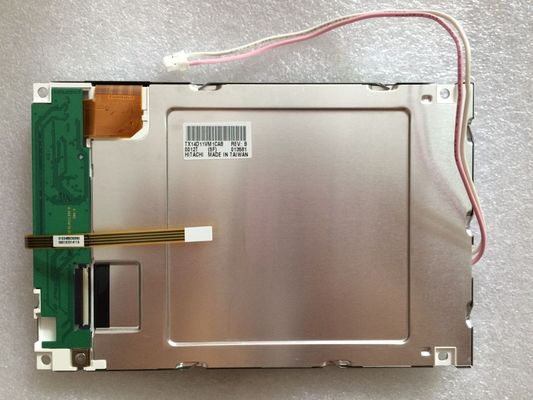

Product Details:
|
| MODEL NUMBER: | TX14D11VM1CAB | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 5.7 Inch | RESOLUTION: | 320(RGB)×240, QVGA, 70PPI |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | TEMPERATURE RANG: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | LVDS TFT LCD Panel,High Brightness TFT LCD 149PPI,SVGA 82PPI TFT LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
TX14D11VM1CAB | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | |
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 119.4×90.6 mm | 167×109 mm | 10.9 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch | |
| Fixation : | Face mounting holes (4-Φ3.5) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 220g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 280 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/70/50 (Typ.)(CR≥5) | 6 o'clock | 45 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 8914K | 262K (6-bit) | X:0.290; Y:0.290 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 83% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 62% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz Reverse Scan :
| No |
|---|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 150mA (Typ.)(IDD) | 3.3V (Typ.)(VDD) | - | ||||
| Voltage for Display Signals : | VSS≤VIL≤0.8V; 2.0V≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | CMOS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FA5B040HF1 | 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C6B-420A | |
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | U shape | 1 pcs | - | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
|||
| 3.0/4.0/6.0mA (Min./Typ./Max.) | 760V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1300V (Min.)(Ta=5℃) | 55KHz (Typ.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HN | |
