TX09D70VM1CEA HITACHI 3.5 inch 240(RGB)×320 320 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

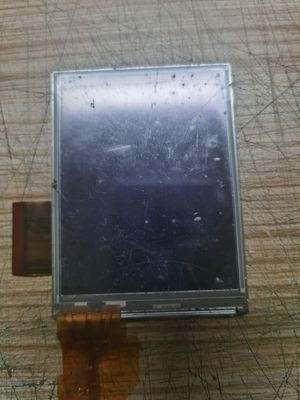

Large Image : TX09D70VM1CEA HITACHI 3.5 inch 240(RGB)×320 320 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	HITIACH
Certification:	ISO9001
Model Number:	TX09D70VM1CEA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

TX09D70VM1CEA HITACHI 3.5 inch 240(RGB)×320 320 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TX09D70VM1CEA	BRAND:	HITIACH
SIZE:	3.5 Inch	RESOLUTION:	240(RGB)×320 (QVGA) 113PPI
BRIGHTNESS:	320 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:	VGA 76PPI TFT LCD Panel , 45% NTSC TFT LCD Panel

HITACHI TX09D70VM1CEA Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TX09D70VM1CEA	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	-
Designed For :
Specific Features :
Remarks :	3 in 1 FPC

HITACHI TX09D70VM1CEA Mechanical Features

Panel Size :	3.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	240(RGB)×320, QVGA	RGB Vertical Stripe	0.0745×0.2235 mm	0.2235×0.2235 mm [113PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	53.64×71.52 mm	57.64×75.52 mm	64×86 mm	4.0/5.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	3:4 (W : H)	Portrait type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	1 point	Without touch controller	-	4-wire Resistive Touch
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	44.0g (Typ.)	Antiglare, Hard coating (3H)

HITACHI TX09D70VM1CEA Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	320 cd/m² (Typ.)	TN, Normally White, TMR	300:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/80/60 (Typ.)(CR≥5)	6 o'clock	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6173K	262K (6-bit)	X:0.320; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	60%	81%	62%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	62%	45%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.43 (Max.)(5 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

HITACHI TX09D70VM1CEA Electronics Features

Frame Rate :	60Hz Reverse Scan :	No
Time Controller (T-CON) :	Need external T-CON

HITACHI TX09D70VM1CEA Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.56/2.3/0.033/0.028mA (IDD/IAVDD/IGH/IGL)		3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	CMOS (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	50 pins

Overview Specs Stocks Suppliers Touch Panels OEM/ODM RFQs Driver Kits

HITACHI TX09D70VM1CEA Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TX09D70VM1CEA	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	-
Designed For :
Specific Features :
Remarks :	3 in 1 FPC

Add to Favorites
Book Stock Alert
Book RFQ Alert
Add to Compare
North American Sales
日本販売

HITACHI TX09D70VM1CEA Mechanical Features

Panel Size :	3.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	240(RGB)×320, QVGA	RGB Vertical Stripe	0.0745×0.2235 mm	0.2235×0.2235 mm [113PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	53.64×71.52 mm	57.64×75.52 mm	64×86 mm	4.0/5.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	3:4 (W : H)	Portrait type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	1 point	Without touch controller	-	4-wire Resistive Touch
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	44.0g (Typ.)	Antiglare, Hard coating (3H)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

HITACHI TX09D70VM1CEA Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	320 cd/m² (Typ.)	TN, Normally White, TMR	300:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/80/60 (Typ.)(CR≥5)	6 o'clock	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6173K	262K (6-bit)	X:0.320; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	60%	81%	62%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	62%	45%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.43 (Max.)(5 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable	-

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

Add to Favorites
Book Stock Alert
Book RFQ Alert
Add to Compare
North American Sales
日本販売

HITACHI TX09D70VM1CEA Electronics Features

Frame Rate :	60Hz Reverse Scan :	No
Time Controller (T-CON) :	Need external T-CON

HITACHI TX09D70VM1CEA Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.56/2.3/0.033/0.028mA (IDD/IAVDD/IGH/IGL)		3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	CMOS (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	50 pins

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

HITACHI TX09D70VM1CEA Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	2 strings	3S2P	-	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	15.4/25mA (Typ./Max.)		9.6/10.5V (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in panel signal interface	No
