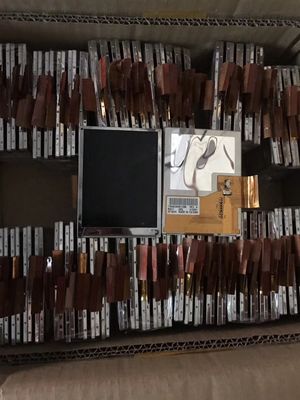

Product Details:
|
| MODEL NUMBER: | TX09D30VM1CBA | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 240(RGB)×320 [QVGA] 113PPI |
| BRIGHTNESS: | 430 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | VGA 76PPI TFT LCD Panel,45% NTSC TFT LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TX09D30VM1CBA | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Remarks : | EOL because of no demand. | |||
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 53.64×71.52 mm | 57.64×75.52 mm | 64×86 mm | 3.12/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 36.0g (Typ.) | ||||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 430 cd/m² (Typ.) | TN, Normally White, TMR | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/80/50 (Typ.)(CR≥5) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 5614K | 262K (6-bit) | X:0.330; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(5 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 40K(Typ.) | 3S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.6/10.5V (Typ./Max.) | 20/25mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.0/8.45/16.5/-8.05V (Typ.)(VCC/VDH/VGH/VGL) | 0.22/3.3/0.23/0.17mA (Typ.)(ICC/IDH/IGH/IGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
