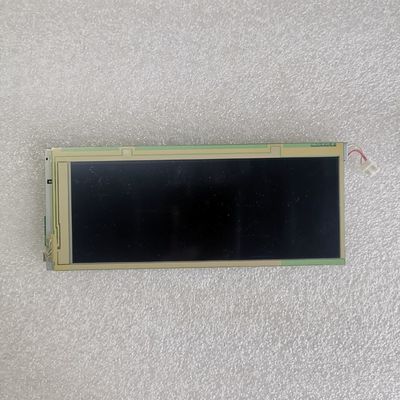

SX16H005 HITACHI 6.2 inch 640(RGB)×240 70cd/m² Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Large Image : SX16H005 HITACHI 6.2 inch 640(RGB)×240 70cd/m² Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	HITACHI
Certification:	ISO9001
Model Number:	SX16H005

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-3DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

SX16H005 HITACHI 6.2 inch 640(RGB)×240 70cd/m² Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	SX16H005	BRAND:	HITIACH
SIZE:	6.2"inch	RESOLUTION:	640(RGB)×240 (HVGA) 109PPI
BRIGHTNESS:	70 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -20 ~ 60 °C Operating Temp.: -5 ~ 40 °C
Highlight:	VGA 76PPI TFT LCD Panel , 45% NTSC TFT LCD Panel

HITACHI SX16H005 Application Details

Basic Detail :	Manufacturer Model Name SX16H005 Panel Type CSTN-LCD , LCM Another Name - Panel Size 6.2 inch Designed For
Maximum Ratings :	OP Temperature -5 ~ 40 °C ST Temperature -20 ~ 60 °C RoHS Vibration Level 1.2G (11.76 m/s²)
Features :

HITACHI SX16H005 Optical Details

Basic Detail :	Luminance 70 cd/m² (Typ.) Contrast Ratio 40:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 90/60 (Typ.)(Tr/Td) ms Viewing Angle 40 (Typ.)(CR≥2, Φ2-Φ1) Operating Mode STN, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.280; Wy:0.320 Support Color Color Color Temperature 8758K White Variation -
1931 Color Gamlt :	NTSC Ratio 31% sRGB 43% coverage Adobe RGB 33% coverage DCI-P3 32% coverage Rec.2020 23% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020

HITACHI SX16H005 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×240, HVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0775×0.224 mm Pixel Pitch(W×H) 0.2325×0.224 mm [109PPI]
Physical Size :	Active Viewing 148.8(W)×53.76(H) mm Overall Dim. 173(W)×70(H) mm Bezel Opening 152.5(W)×57.8(H) mm Overall Depth 7.0 (Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 8:3 Shape Style
Other Detail :	Mass 100g (Typ.) Surface

ITACHI SX16H005 Electronics Details

Refresh Rate :	150Hz
Reverse Scan :	No
Total Consumption :	1.2W
Driving Method :	Duty: 1/242

HITACHI SX16H005 Interface Detail

Signal Electrical :	Input Current 46mA (Typ.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface Parallel Data (8-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS FH12A-24S-0.5SH 0.5 mm 24 pins 1 pcs

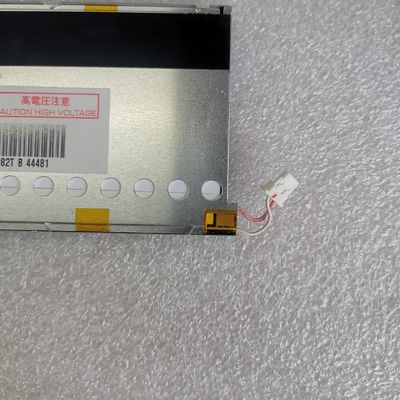

HITACHI SX16H005 Lightting Details

Lamp Features :	Lamp Type CCFL Amount 1 pcs Position Edge light type (Bottom side) Exchange - Lamp Shape - Lamp Life -
Lamp Electrical :	Input Voltage 560V (Typ.) Input Current 1.5/1.9/3.0mA (Min./Typ./Max.) Frequency 60KHz (Typ.) Turn-on Voltage 1400V (Min.)(Ta=5℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-02VS-1 4.0 mm 2 pins 1 pcs BLL-2PINS-LH
Backlight Driver :	No
