SP14Q011-A1 KOE 5.7" 320×240, QVGA, 70PPI 220 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA

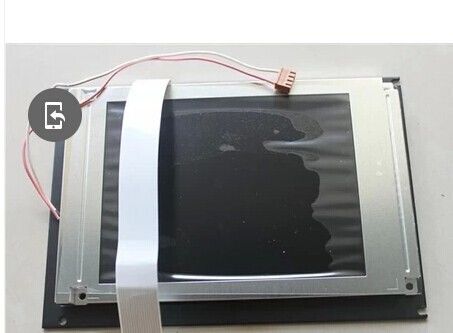

Large Image : SP14Q011-A1 KOE 5.7" 320×240, QVGA, 70PPI 220 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA

Product Details:

Place of Origin:	JAPAN
Brand Name:	KOE
Certification:	ISO9001
Model Number:	SP14Q011-A1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-3 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

SP14Q011-A1 KOE 5.7" 320×240, QVGA, 70PPI 220 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLA

Description

MODEL NUMBER:	SP14Q011-A1	BRAND:	KOE
SIZE:	5.7 Inch	RESOLUTION:	320×240, QVGA, 70PPI
BRIGHTNESS:	220 Cd/m² (Typ.)	TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Lamp Type:	WLED	SIGNAL LNTERFACE:	LVDS
Highlight:	VGA 76PPI TFT LCD Panel , 45% NTSC TFT LCD Panel

KOE SP14Q011-A1 Application Details

Basic Detail :	Manufacturer Model Name SP14Q011-A1 Panel Type FSTN-LCD , LCM Another Name - Panel Size 5.7 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level 1.2G (11.76 m/s²)
Features :

KOE SP14Q011-A1 Optical Details

Basic Detail :	Luminance 220 cd/m² (Typ.) Contrast Ratio 25:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 330/150 (Typ.)(Tr/Td) ms Viewing Angle 40/40/40/50 (Typ.)(CR≥2) Operating Mode STN, Black/White (Negative), Transmissive
Color Performance :	Chromaticity - Support Color Monochrome

KOE SP14Q011-A1 Mechanical Details

Pixel Features :	Number of Pixel 320×240, QVGA Arrangement Rectangle Dot Pitch(W×H) 0.360×0.360 mm Pixel Pitch(W×H) 0.360×0.360 mm [70PPI]
Physical Size :	Active Viewing 115.2(W)×86.4(H) mm Overall Dim. 131(W)×102.2(H) mm Bezel Opening 119.4(W)×90.6(H) mm Overall Depth 10.9/11.7 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Rear mounting holes (4-Φ2.5)
Other Detail :	Mass -

KOE SP14Q011-A1 Electronics Details

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/241

KOE SP14Q011-A1 Interface Detail

Signal Electrical :	Input Current 30mA (Typ.) Input Voltage 5.0V (Typ.) Consumption - Signal Interface Parallel Data (4-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment molex 52893-2095 0.5 mm 20 pins 1 pcs

KOE SP14Q011-A1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 1S8P Position Edge light type Exchange - Lamp Shape Parallel Lamp Life 40K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 5.0V (Typ.) Input Current 160/200mA (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLE-3PINS-ANC
Backlight Driver :	No
