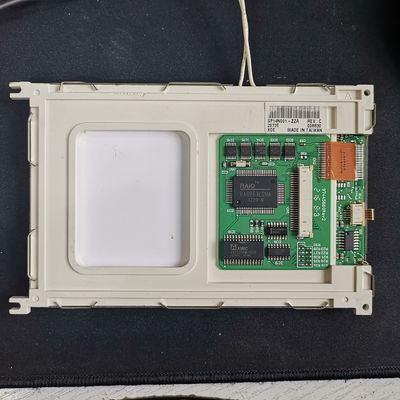

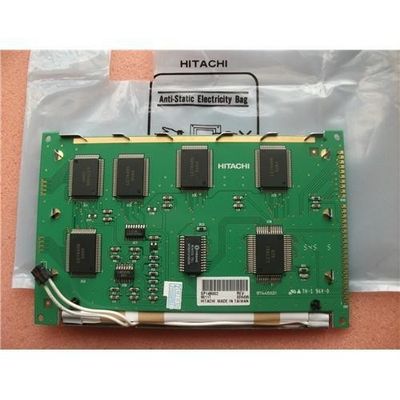

Product Details:
|
| MODEL NUMBER: | SP14N001 | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 5.1 Inch | RESOLUTION: | 240×128 50PPI |
| BRIGHTNESS: | 150 Cd/m² (Typ. | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| Highlight: | VGA 76PPI TFT LCD Panel,45% NTSC TFT LCD Panel |
||
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 300V (Typ.) | Current Supply | 5.0±1mA | ||
| Frequency | 70/85KHz (Typ./Max.) | Startup Voltage | 1000V (Max.)(Ta=+25℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | IL-G-4S-S3C2-SA | 1 pcs | 4 pins | 2.5 mm | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 20:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) | Display Mode | STN, Black/White (Negative), Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 120/150 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Color Temperature | - | White Uniformity | 1.43 (Max.)(9 points) |
| Pixel Features : | Resolution | 240×128 | Dot Pitch(mm) | 0.50×0.50 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.50×0.50 (H×V) [50PPI] | |
| Mechanical Size : | Active Area(mm) | 119.98(H) × 63.98(V) | Bezel Area(mm) | 124.0(H) × 70.0(V) |
| Outline Dim.(mm) | 159.4(H) × 101(V) | Depth(mm) | 11.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Spec : | Weight | - | Treatment | Antiglare |
| Basic Information : | Brand | Model | SP14N001 | |
|---|---|---|---|---|
| Type | LCM FSTN-LCD | Used For | ||
| Screen Size | 5.1" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| RoHS | Vibration | 1.2G (11.76 m/s²) | ||
| Typical Features : | ||||
| Remarks : | DC/DC | |||

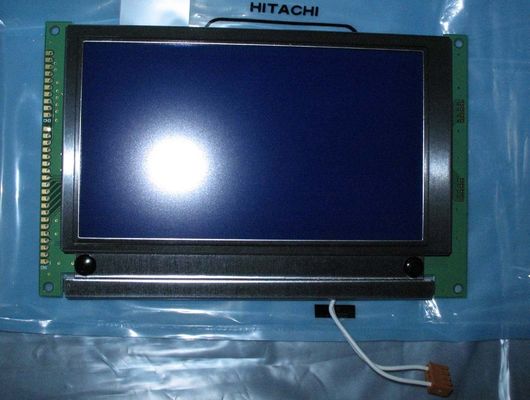

The SP14N001 is a 5.1 inch diagonal FSTN-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Panelook in the following: Matte , DC/DC. Based on its features, Panelook recommend that this model be applied to Industrial etc.Built-in T6963C driver IC. According to the information stored in Panelook this model mass production on Q2, 2001 and last shippment on Q3, 2014, Now this model is discontinued. There are 1 items stock and 1 suppliers of this model on Panelook. We inputted this model's specification on Dec 19 2012 for the first time, and the latest update on Jun 25 2015. If you want to embed SP14N001 LCM in your future product, Panelook strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail. The SP14N001 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
