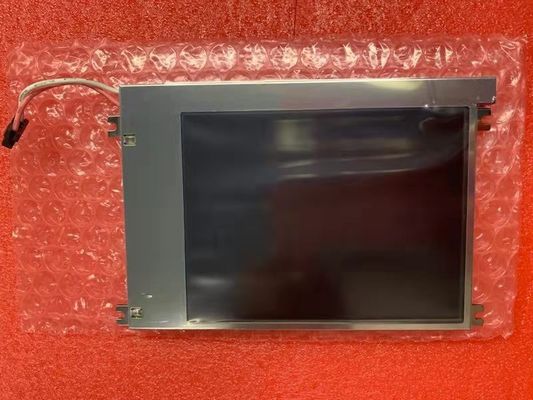

Product Details:
|
| MODEL NUMBER: | LMG7524RPFC | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 4.7" | RESOLUTION: | 320×240, QVGA, 84PPI |
| BRIGHTNESS: | 100 Cd/m² | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -20 ~ 60 °C |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| High Light: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Detail : | Manufacturer |  |
Model Name | LMG7524RPFC |
|---|---|---|---|---|
| Panel Type | FSTN-LCD , LCM | Another Name | - | |
| Panel Size | 4.7 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 40 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS | |
| Basic Information : | Luminance | 100 cd/m² (Typ.) | Contrast Ratio | 20 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 160/110 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) |
Operating Mode | STN, Black/White (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.300×0.300 mm | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] | |
| Physical Size : | Active Viewing | 95.97(W)×71.97(H) mm | Overall Dim. | 129.6(W)×92.6(H) mm |
| Bezel Opening | 104.0(W)×79.5(H) mm | Overall Depth | 6.7±0.6 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-R1.5) | |||
| Other Detail : | Mass | 110g (Typ.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Reverse Scan : | No |
|---|---|
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Input Current | 4.0mA (Typ.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| TOKUTSU | BL-113-12RU | 1 pcs | 1.0 mm | 12 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Lamp Electrical : | Input Current | 5.0±1mA | Input Voltage | 300V (Typ.) | ||
| Frequency | 70/85KHz (Typ./Max.) | Turn-on Voltage | 1000V (Min.)(Ta=+25℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | IL-G-4S-S3C2-SA | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-HNNL | |
