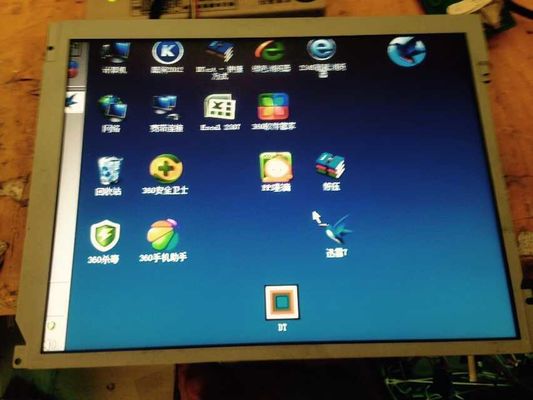

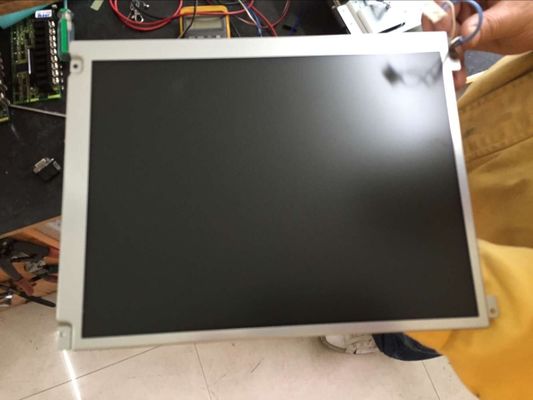

Product Details:
|
| MODEL NUMBER: | AA121SN03 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 12.1 Inch | RESOLUTION: | 800(RGB)×600 [SVGA] 82PPI |
| BRIGHTNESS: | 1500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
| Highlight: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Backlight Features: | Type | Position | Shape | Amount  |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 4 pcs | 50K(Min.) | Replaceable | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
|||
| 3.0/6.5/7.25mA (Min./Typ./Max.) | 540V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1000/1200/1290V (Min.)(Ta=+25/0/-20℃) | 30/60KHz (Typ.) | |||||

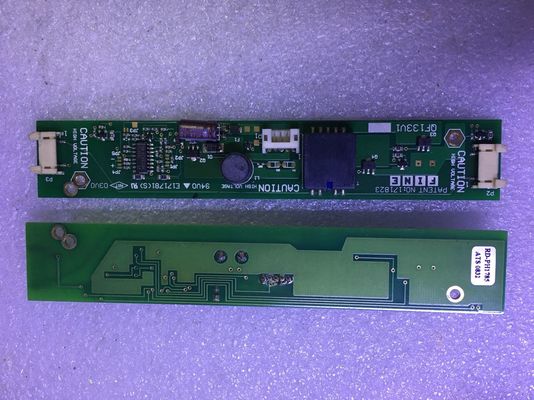

| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-04VS-1 | 2 pcs | 4.0 mm | 4 pins | BLL-4PINS-HHNL | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 300/450mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SEB20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Power Consumption : | 15.0W (Typ.) | |
|---|---|---|
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1500 cd/m² (Typ.) | TN, Normally White, Transmissive | 650:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/45/75 (Typ.)(CR≥10) | 6 o'clock | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 56% | 42% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.30 (Max.)(5 points) |
||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.0×187.5 mm | 280×219 mm | 17.8 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.15Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
