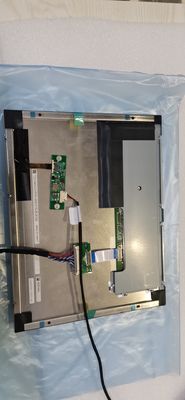

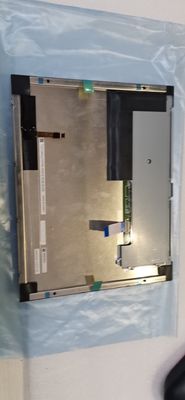

Product Details:
|
| MODEL NUMBER: | TCG104XGLPAPNN-AN30-S | SIZE: | 10.4INCH |
|---|---|---|---|
| RESOLUTION: | 1024(RGB)×768 (XGA) 123PPI | BRIGHTNESS: | 600 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Signal Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Backlight: | 2 Strings WLED , 50K Hours , No Driver | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Highlight: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG104XGLPAPNN-AN30-S | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C | - |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.0685×0.2055 mm | 0.2055×0.2055 mm [123PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 210.4×157.8 mm | 215.4×161.8 mm | 230×180.2 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | AWV, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 18/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6304K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.315; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 270/350mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | IMSA-9686S-20B-GF4N | 1 pcs | 0.5 mm | 20 pins | LVDS-20P1C8B-010H | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2 strings | 2 strings | 50K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80mA (Typ.) | 27.0/30.51V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 1.0 mm | 4 pins | BLE-4PINS-CACA | |||
TCG104XGLPAPNN-AN30-S supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 230(W)×180.2(H)×11(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, net weight of TBD. As a AWV, Normally Black, Transmissive LCM product, TCG104XGLPAPNN-AN30-S can provides 600 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 18/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 51% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TCG104XGLPAPNN-AN30-S utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
