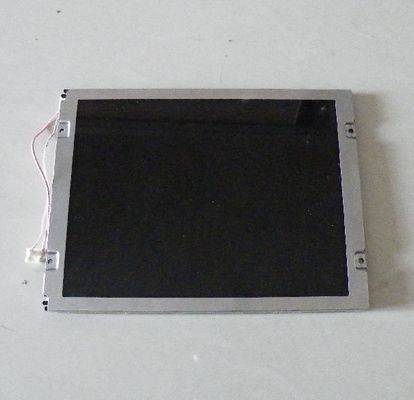

AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY
AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY

Large Image :  AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA084VF05
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 110USD
Packaging Details: STANDARD PACKING
Delivery Time: 3 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS

AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

Description
MODEL NUMBER: AA084VF05 BRAND: Mitsubishi
SIZE: 8.4 Inch RESOLUTION: 640(RGB)×480 [VGA] 95PPI
BRIGHTNESS: 380 Cd/m² (Typ.) TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
High Light:

TFT LCD Display SVGA 119PPI

,

LVDS TFT LCD Module

Mitsubishi AA084VF05 Overview

The AA084VF05 is a 8.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, 180° Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q3, 2009, Now this model is discontinued. There are 1 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Jul 2 2014 for the first time, and the latest update on Mar 17 2022. If you want to embed AA084VF05 LCM in your future product, Panelook strongly recommend that you should contact with Mitsubishi or it's agent to learn lateast production and specification detail. The AA084VF05 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.



Mitsubishi AA084VF05 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.089×0.267 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.267×0.267 mm (H×V) [95PPI]
Mechanical Size :
Display Area
170.88×128.16 mm (H×V)
Bezel Area
174.9×132.2 mm (H×V)
Outline Dim.
199.5×149 mm (H×V)
Outline Depth
11.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4-Φ3.3) on left, right bezel
Other Features :
Weight
350g (Typ.)
Surface
Antiglare, Hard coating (3H)




Mitsubishi AA084VF05 Optical Details

Basic Information :
Brightness
380 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
4/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.30 (Max.)(5 points) AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY 0
1931 Color Gamlt :
NTSC Ratio
41%
sRGB
56% coverage
Adobe RGB
42% coverage
DCI-P3
42% coverage
Rec.2020
30% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Mitsubishi AA084VF05 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
2 pcs
Life Time
50K(Min.) (Hours)
Replacement
Replaceable
Lamp Shape
Straight
Position
Edge light type (Top and Bottom)
Lamp Electrical :
Voltage Input
400V (Typ.)
Current Input
3.0/6.5/7.5mA (Min./Typ./Max.)
Frequency
30/70KHz (Min./Max.)
Kick-off Voltage
850/1190/1450V (Min.)(Ta=+25/0/-30℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY 1
JST
8.0 mm
2 pins
2 pcs
BLL-2PINS-HL



Mitsubishi AA084VF05 Interface Detail

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.8V; 2.0V≤VIH≤5.5V
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
320/500mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AA084VF05 Mitsubishi 8.4 inch 640(RGB)×480 380 cd/m² Storage Temperature: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY 2
HRS
1.0 mm
31 pins
1 pcs
DRGB-31P1C6B-010F
