AA121SN01 Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

Certification
China Sapientia Display Co.,LIMITED certification
Customer Reviews
Dear Kay, We receive the product yesterday,your goods are superior in quality compared with other supplier. Thank you for your help. Best and Regards, Adam

—— Adam Davis

Thank you for your good service and product,hope our cooperation can be even more long-time and be happy!

—— Eric Wilson

I'm Online Chat Now

AA121SN01 Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

AA121SN01  Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY
AA121SN01  Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY AA121SN01  Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY AA121SN01  Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C  INDUSTRIAL LOD DISPLAY

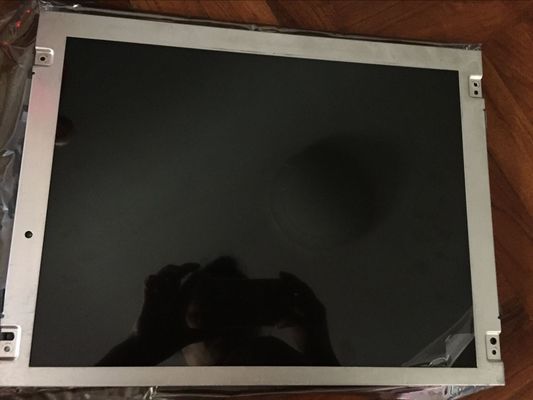

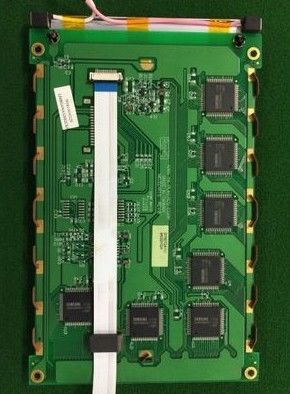

Large Image :  AA121SN01 Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA121SN01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD120
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 50PCS

AA121SN01 Mitsubishi 12.1 inch 800(RGB)×600 1000 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LOD DISPLAY

Description
MODEL NUMBER: AA121SN01 BRAND: Mitsubishi
SIZE: 12.1 Inch RESOLUTION: 800(RGB)×600 (SVGA) 82PPI
BRIGHTNESS: 1000 Cd/m² (Typ.) TEMPERATURE RANGE: Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

TFT LCD Display SVGA 119PPI

,

LVDS TFT LCD Module

Mitsubishi AA121SN01 Application Details
