AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

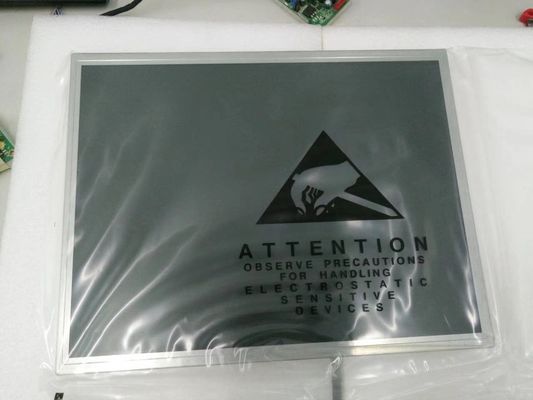

Large Image : AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA150XN09

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	180USD
Packaging Details:	STANDARD PACKING
Delivery Time:	3 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

AA150XN09 Mitsubishi 15.0" 1024(RGB)×768 350 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISP

Description

BRAND:	Mitsubishi	SIZE:	15.0"
RESOLUTION:	1024(RGB)×768, XGA, 85PPI	BRIGHTNESS:	350 Cd/m² (Typ.)
TEMPERATURE RANGE:	Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
Highlight:	TFT LCD Display SVGA 119PPI , LVDS TFT LCD Module

Mitsubishi AA150XN09 Application Details

Basic Detail :	Manufacturer		Model Name	AA150XN09
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	15.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 70 °C	ST Temperature	-20 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS

Mitsubishi AA150XN09 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	450 : 1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	6/19 (Typ.)(Tr/Td) (ms)
	Viewing Angle	75/75/60/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	-
Color Performance :	Color Temperature	6485K	White Uniformity	-
1931 Color Gamlt :	NTSC Ratio	70%	sRGB	95% coverage
	Adobe RGB	74% coverage	DCI-P3	73% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Overview Specs Stocks Suppliers Touch Panels OEM/ODM RFQs Driver Kits

Mitsubishi AA150XN09 Application Details

Basic Detail :	Manufacturer		Model Name	AA150XN09
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	15.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 70 °C	ST Temperature	-20 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :

Add to Favorites
Book Stock Alert
Book RFQ Alert
Add to Compare
North American Sales
日本販売

Mitsubishi AA150XN09 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	450 : 1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	6/19 (Typ.)(Tr/Td) (ms)
	Viewing Angle	75/75/60/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	-
Color Performance :	Color Temperature	6485K	White Uniformity	-
1931 Color Gamlt :	NTSC Ratio	70%	sRGB	95% coverage
	Adobe RGB	74% coverage	DCI-P3	73% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

Mitsubishi AA150XN09 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)×768 [XGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.099×0.297 mm	Pixel Pitch(W×H)	0.297×0.297 mm [85PPI]
Physical Size :	Active Viewing	304.128(W)×228.096(H) mm	Overall Dim.	326(W)×255(H) mm
Physical Size :	Bezel Opening	308.1(W)×232.1(H) mm	Overall Depth	12.6/16.4 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel

Mitsubishi AA150XN09 Electronics Details

Refresh Rate :

60Hz

itsubishi AA150XN09 Interface Details

Signal Electrical :	Input Current	480/750mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	-	Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position		Physical Type	Connector

Mitsubishi AA150XN09 Lightting Details

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type (Top and Bottom)
Lamp Features:	Exchange	-	Amount	4 pcs	Life	-
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
	JST	BHSR-02VS-1	2 pcs	3.5 mm	2 pins	BLL-2PINS-HH
	JST	BHR-02VS-1	2 pcs	4.0 mm	2 pins	BLL-2PINS-LL
