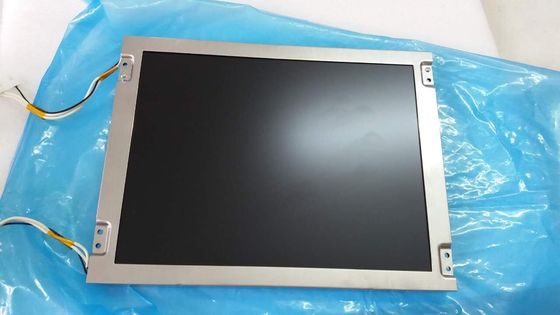

Product Details:
|
| MODEL NUMBER: | AA065VE13 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 640×480 RGB |
| BRIGHTNESS: | 1300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Detail : | Manufacturer |  |
Model Name | AA065VE13 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.5 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS | |
| Basic Information : | Luminance | 1300 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 6/19 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.069×0.207 mm | Pixel Pitch(W×H) | 0.207×0.207 mm [122PPI] | |
| Physical Size : | Active Viewing | 132.48(W)×99.36(H) mm | Overall Dim. | 154(W)×121(H) mm |
| Bezel Opening | 135.5(W)×102.4(H) mm | Overall Depth | 11.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-R1.25); Side mounting holes (4-M2) | |||
| Other Detail : | Mass | 185g (Typ.) | Surface | Hard coating (2H), Antireflection |
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 3.9W (Typ.) |
| Signal Electrical : | Input Current | 210/280mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 2 strings | Life | 100K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 90/100mA (Typ./Max.) | Input Voltage | 17.7/21.4V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-NNCAAC | |
| Backlight Driver : | No | |||||
