Product Details:
|

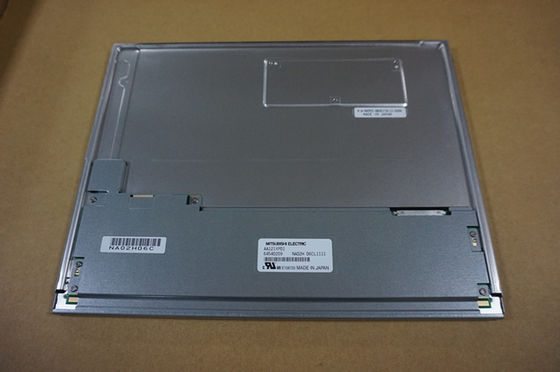

| MODEL NUMBER: | AA121TC01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 1280×800 RGB |
| BRIGHTNESS: | 1000CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C | ||
| Highlight: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Detail : | Manufacturer | Model Name | AA121TC01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | T-55312D121J-FW-A-CAN | |
| Panel Size | 12.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 80 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 4/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.068×0.204 mm | Pixel Pitch(W×H) | 0.204×0.204 mm [124PPI] | |
| Physical Size : | Active Viewing | 261.12(W)×163.2(H) mm | Overall Dim. | 283(W)×185.1(H) mm |
| Bezel Opening | 263.52(W)×165.6(H) mm | Overall Depth | 19.4 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Detail : | Mass | 880g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Input Current | 550/950mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 4 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/6.5/7.5mA (Min./Typ./Max.) | Input Voltage | 540V (Typ.) | ||
| Frequency | 35/80KHz (Min./Max.) | Turn-on Voltage | 975/1150/1240V (Min.)(Ta=+25/0/-20℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-04VS-1 | 2 pcs | 4.0 mm | 4 pins | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
