AA084XE11ADA11 Mitsubishi 8.4INCH 1024×768 RGB 800CD/M2 WLED LVDS Operating Temperature: -30 ~ 70 °C INDUSTRIAL LCD DISP

Large Image : AA084XE11ADA11 Mitsubishi 8.4INCH 1024×768 RGB 800CD/M2 WLED LVDS Operating Temperature: -30 ~ 70 °C INDUSTRIAL LCD DISP

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA084XE11ADA11

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD135
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	100PCS

Contact Now

AA084XE11ADA11 Mitsubishi 8.4INCH 1024×768 RGB 800CD/M2 WLED LVDS Operating Temperature: -30 ~ 70 °C INDUSTRIAL LCD DISP

Description

MODEL NUMBER:	AA084XE11ADA11	BRAND:	Mitsubishi
SIZE:	8.4INCH	RESOLUTION:	1024×768 RGB
BRIGHTNESS:	800CD/M2	TEMPERATURE RANGE:	Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:	TFT LCD Panel 122 PPI , Symmetry TFT LCD Panel

Mitsubishi AA084XE11ADA11 Application Details

Basic Info :

Panel Brand

Panel Model

AA084XE11ADA11

Diagonal Size

8.4"

Application

Panel Type

a-Si TFT-LCD , LCM

Model Alias

Reliability :

Operating Temp.

-30 ~ 70 °C

Storage Temp.

-30 ~ 80 °C

RoHS State

Vibration Rating

1.0G (9.8 m/s²)

Mitsubishi AA084XE11ADA11 Mechanical Details

Pixel Features :

Pixel Format

1024(RGB)×768, XGA

Dot Pitch

0.0555×0.1665 mm (H×V)

Configuration

RGB Vertical Stripe

Pixel Pitch

0.1665×0.1665 mm (H×V) [152PPI]

Mechanical Size :

Display Area

170.496×127.872 mm (H×V)

Outline Dim.

172.2×129.5 mm (H×V)

Outline Dim.

209.5×159 mm (H×V)

Outline Depth

13.0/15.4 (Typ./Max.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

4:3 (H:V)

Shape Style

Touch Screen :

Touch Points

10 points

TP Signal

USB

TP Controller

With touch controller

Touchscreen

PCAP, Air Bonding

Holes & Brackets :

Side mounting holes (4-M2) on left, right bezel

Other Features :

Weight

490g

Surface

Clear, Hard coating (5H)

Panel Cover

With Strengthened Cover Glass

Mitsubishi AA084XE11ADA11 Optical Details

Basic Information :

Brightness

800 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (Transmissive)

Viewing Angle

80/80/80/60 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

6 o'clock

Response Time

4/12 (Typ.)(Tr/Td) ms

Color Performance :

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit / 8-bit)

Color Temperature

6485K

Uniformity

1.30 (Max.)(5 points)

1931 Color Gamlt :

NTSC Ratio

40%

sRGB

56% coverage

Adobe RGB

42% coverage

DCI-P3

42% coverage

Rec.2020

30% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Dispaly Performance :

Outdoor Visibility

Sunlight Readable

Transmittance

Mitsubishi AA084XE11ADA11 Electronics Details

Frame Frequency :

60Hz

Reverse Scan :

Yes (180°)

Power Consumption :

6.9W (Typ.)

Mitsubishi AA084XE11ADA11 Backlight Details

Back-light Features :

Lamp Type

WLED

Amount

2 strings

Life Time

100K(Typ.) Hours

Replacement

Lamp Shape

2 strings

Position

Edge light type

Lamp Electrical :

Voltage Input

21.9/25.3V (Typ./Max.)

Current Input

125/135mA (Typ./Max.)

Consumption

5.48W (Typ.) AA084XE11ADA11 Mitsubishi 8.4INCH 1024×768 RGB 800CD/M2 WLED LVDS Operating Temperature: -30 ~ 70 °C INDUSTRIAL LCD DISP 5

Interface Features :

Type

Connector

Position

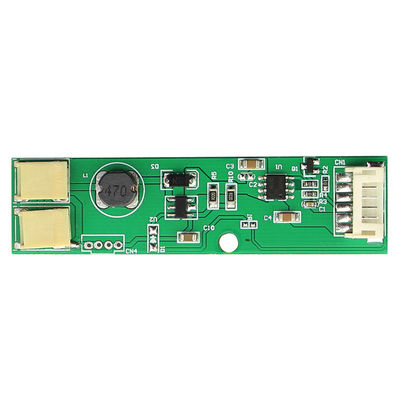

Lamp Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JST

SM06B-SHLS-TF(LF)(SN)

1.0 mm

6 pins

1 pcs

BLE-6PINS-NNCAAC

Mitsubishi AA084XE11ADA11 Interface Details

Signal Systerm :

LVDS (1 ch, 6/8-bit)

Logic Voltage

Signal Electrical :

Voltage Input

3.3V (Typ.)

Current Input

380/650mA (Typ./Max.)

Consumption

1.21W (Typ.)

Interface Features :

Type

Connector

Position

Connector Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

I-PEX

20186-202E-11F

1.25 mm

20 pins

1 pcs

LVDS-20P1C8B-010H

AA084XE11ADA11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm, outline size of 209.5(W)×159(H)×15.4(D) mm, viewing area size of 172.2(W)×129.5(H) mm, with surface treament of Clear, Hard coating (5H), net weight of 490g. As a TN, Normally White, Transmissive LCM product, AA084XE11ADA11 can provides 800 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA084XE11ADA11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
