Product Details:
|

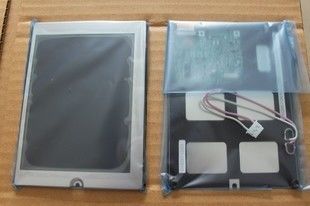

MODEL NUMBER: | AA121SR01 | BRAND: | Mitsubishi |
---|---|---|---|
SIZE: | 12.1" | RESOLUTION: | 0(RGB)×600, SVGA, 82PPI |
BRIGHTNESS: | 450 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
High Light: | TFT LCD Panel 122 PPI,Symmetry TFT LCD Panel |
Basic Info : | Panel Brand | ![]() |
Panel Model | AA121SR01 ![]() |
---|---|---|---|---|
Diagonal Size | 12.1" | Application |
|
|
Panel Type | a-Si TFT-LCD , LCM | Model Alias | T-51512D121J-FW-A-AIN | |
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
RoHS State | ![]() |
Vibration Rating | 1.0G (9.8 m/s²) |
Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
Viewing Direction | 6 o'clock | Response Time | 4/12 (Typ.)(Tr/Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) ![]() |
|
1931 Color Gamlt : | NTSC Ratio | 41% | sRGB | 57% coverage |
Adobe RGB | 43% coverage | DCI-P3 | 42% coverage | |
Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Frame Frequency : | 60Hz ![]() | Yes (180°) |
---|
Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
---|---|---|---|---|---|---|
Replacement | Replaceable | Amount | 2 pcs | Position | Edge light type (Top side) | |
Lamp Electrical : | Voltage Input | 540V (Typ.) | Current Input | 3.0/6.0/7.0mA (Min./Typ./Max.) | ||
Frequency | 30/70KHz (Min./Max.) | Kick-off Voltage | 1000/1200/1320V (Min.)(Ta=+25/0/-30℃) | |||
Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration ![]() |
JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL |
Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.8V; 2.0V≤VIH≤5.5V | |||
---|---|---|---|---|---|---|
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 340/500mA (Typ./Max.) | ||
Interface Features : | Type | Connector | Position | - | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration ![]() |
HRS | DF9B-41P-1V(32) | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010K |
