AA121SM01 Mitsubishi 12.1 inch 800(RGB)×600 550 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

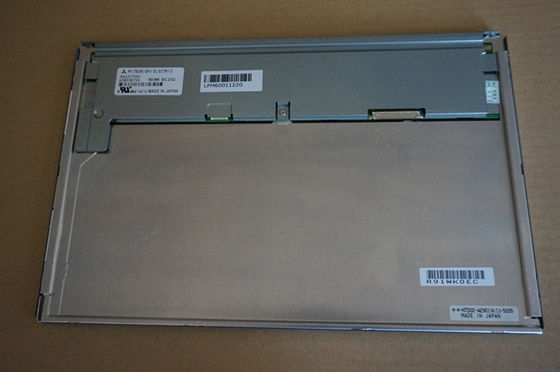

Large Image : AA121SM01 Mitsubishi 12.1 inch 800(RGB)×600 550 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA121SM01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD130
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	30PCS

Contact Now

AA121SM01 Mitsubishi 12.1 inch 800(RGB)×600 550 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	AA121SM01	BRAND:	Mitsubishi
SIZE:	12.1 Inch	RESOLUTION:	800(RGB)×600 [SVGA] 82PPI
BRIGHTNESS:	550 Cd/m² (Typ.)	TEMPERATURE RANGE:	Operating Temp.: -30 ~ 80 °C
High Light:	TFT LCD Panel 122 PPI , Symmetry TFT LCD Panel

Mitsubishi AA121SM01 Application Details

Basic Detail :	Manufacturer Model Name AA121SM01 1 Compatible Panel Type a-Si TFT-LCD , LCM Another Name T-55373D121J-LW-A-AAN Panel Size 12.1 inch Designed For
Maximum Ratings :	OP Temperature -30 ~ 80 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level 1.0G (9.8 m/s²)

Mitsubishi AA121SM01 Optical Details

Basic Detail :	Luminance 550 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 4/12 (Typ.)(Tr/Td) ms Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit) Color Temperature 6485K White Variation 1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 39% sRGB 55% coverage Adobe RGB 41% coverage DCI-P3 41% coverage Rec.2020 29% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA121SM01 Mechanical Details

Pixel Features :	Number of Pixel 800(RGB)×600, SVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.1025×0.3075 mm Pixel Pitch(W×H) 0.3075×0.3075 mm [82PPI]
Physical Size :	Active Viewing 246(W)×184.5(H) mm Overall Dim. 280(W)×210(H) mm Bezel Opening 249.0(W)×187.5(H) mm Overall Depth 12.0±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (4-Φ3.5) on left bezel, right slugs
Other Detail :	Mass 750g (Typ.) Surface Antiglare, Hard coating (3H)

Mitsubishi AA121SM01 Electronics Details

Refresh Rate :	60Hz Reverse Scan :	Yes (180°)
Total Consumption :	6.9W (Typ.)

Mitsubishi AA121SM01 Interface Detail

Signal Electrical :	Input Current 340/500mA (Typ./Max.)(ICC) Input Voltage 3.3V (Typ.)(VCC) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.8V; 2.0V≤VIH≤5.5V
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9B-41P-1V(32) 1.0 mm 41 pins 1 pcs DRGB-41P1C6B-010K

Mitsubishi AA121SM01 Lightting Details

Lamp Features :	Lamp Type WLED Amount 2 strings Position Edge light type (Top side) Exchange Replaceable Lamp Shape 2 strings Lamp Life 60K(Min.) (Hours)
Lamp Electrical :	Input Voltage 24/31.1V (Typ./Max.) Input Current 120/130mA (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST SM06B-SHLS-TF(LF)(SN) 1.0 mm 6 pins 1 pcs BLE-6PINS-NNCAAC
