AA104VC03 Mitsubishi 10.4"INCH 640(RGB)×480 380 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

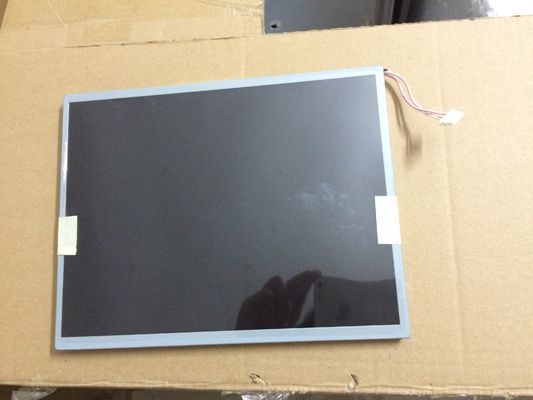

Large Image : AA104VC03 Mitsubishi 10.4"INCH 640(RGB)×480 380 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA104VC03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	160USD
Packaging Details:	STANDARD PACKING
Delivery Time:	3DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

AA104VC03 Mitsubishi 10.4"INCH 640(RGB)×480 380 cd/m² Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	AA104VC03	BRAND:	Mitsubishi
SIZE:	10.4"INCH	RESOLUTION:	640(RGB)×480, VGA, 76PPI
BRIGHTNESS:	380 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -20 ~ 80 °C
Highlight:	TFT LCD Panel 122 PPI , Symmetry TFT LCD Panel

itsubishi AA104VC03 Application Features

Basic Information :	Manufacturer	Panel Model 1 Compatible	Panel Type	Alias
Basic Information :		AA104VC03	a-Si TFT-LCD , LCM	T-51513D104J-FW-A-AE
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 70 °C	-20 ~ 80 °C	-

Mitsubishi AA104VC03 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	380 (Typ.)	80/80/70/80 (Typ.)(CR≥10)	10/30 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	TN, Normally White, Transmissive	400 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	5476K	262K (6-bit)	X:0.333; Y:0.349
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	40%	56%	41%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	41%	30%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.30 (Max.)(5 points)

Mitsubishi AA104VC03 Mechanical Features

Panel Size :	10.4"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	640(RGB)×480 [VGA]	RGB Vertical Stripe	0.330×0.330 [76PPI]	0.110×0.330
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	211.2(H) × 158.4(V)	215.4(H) × 161.8(V)	243(H) × 181.6(V)	12.2±0.5 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Mounting :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	540g (Typ.)	-	Hard coating (2H), Antireflection

Mitsubishi AA104VC03 Electronics Features

Reverse Scan :

Yes (180°)

Vertical Frequency :

60Hz

Mitsubishi AA104VC03 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type (Top and Bottom)	2 pcs	Straight	50K(Min.)	Replaceable
CCFL Electrical :	Voltage Supply		Current Supply			Power
	480V (Typ.)		3.0/6.0/7.0mA (Min./Typ./Max.)
	Operating Frequency			Kick-off Voltage
	40/80KHz (Min./Max.)			930/1170/1300V (Min.)(Ta=+25/0/-20℃)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	BHR-02(8.0)VS-1N	8.0 mm	2 pins	2 pcs	BLL-2PINS-HL

Mitsubishi AA104VC03 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3/5.0V (Typ.)(VCC)		300/200mA (Typ.)(ICC)			-
Voltage for Display Signals :	0≤VIL≤0.8V; 2.0V≤VIH≤5.25V
Interface Features :	Position	Signal				Type
Interface Features :		CMOS (1 ch, 6-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	DF9B-31P-1V	1.0 mm	31 pins	1 pcs	DRGB-31P1C6B-010F

Mitsubishi AA104VC03 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	10 pcs / box	7.0 Kgs	475×302×422 mm (L×W×H)
