AA104VC04 Mitsubishi 10.4 inch 640(RGB)×480 430 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

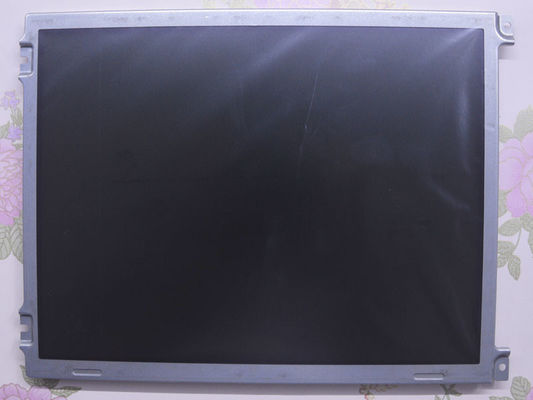

Large Image : AA104VC04 Mitsubishi 10.4 inch 640(RGB)×480 430 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	aa104vc04

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	120USD
Packaging Details:	STANDARD PACKING
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	50PCS

Contact Now

AA104VC04 Mitsubishi 10.4 inch 640(RGB)×480 430 cd/m² Storage Temperature: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	Aa104vc04	BRAND:	Mitsubishi
SIZE:	10.4 Inch	RESOLUTION:	640(RGB)×480 (VGA) 76PPI
BRIGHTNESS:	430 Cd/m² (Typ.)	TEMPERATURE RANGE:	Storage Temp.: -20 ~ 80 °C
Highlight:	QVGA 106PPI Lcd Display Panels , TFT LCD Panel LVDS

Mitsubishi AA104VC04 Application Details

Basic Detail :	Manufacturer Model Name AA104VC04 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -20 ~ 80 °C RoHS Vibration Level 1.0G (9.8 m/s²)

Mitsubishi AA104VC04 Optical Details

Basic Detail :	Luminance 430 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 6/19 (Typ.)(Tr/Td) ms Viewing Angle 65/65/45/65 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit) Color Temperature 6485K White Variation 1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 41% sRGB 57% coverage Adobe RGB 43% coverage DCI-P3 42% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA104VC04 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×181.6(H) mm Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 12.2±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Mass 570g (Typ.) Surface Antiglare, Hard coating (3H)

Mitsubishi AA104VC04 Electronics Details

Refresh Rate :	60Hz Reverse Scan :	Yes (180°)

Mitsubishi AA104VC04 Interface Detail

Signal Electrical :	Input Current 200/300mA (Typ./Max.)(ICC) Input Voltage 3.3V (Typ.)(VCC) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.8V; 2.0V≤VIH≤5.5V
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9B-31P-1V(32) 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010F

Mitsubishi AA104VC04 Lightting Details

Lamp Features :	Lamp Type CCFL Amount 2 pcs Position Edge light type (Top and Bottom) Exchange Replaceable Lamp Shape Straight Lamp Life 50K(Min.) (Hours)
Lamp Electrical :	Input Voltage 485V (Typ.) Input Current 3.0/6.0/7.0mA (Min./Typ./Max.) Frequency 40/100KHz (Min./Max.) Turn-on Voltage 900/1350/1440V (Min.)(Ta=+25/0/-20℃)
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-02(8.0)VS-1N 8.0 mm 2 pins 2 pcs BLL-2PINS-HL
