AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY
AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

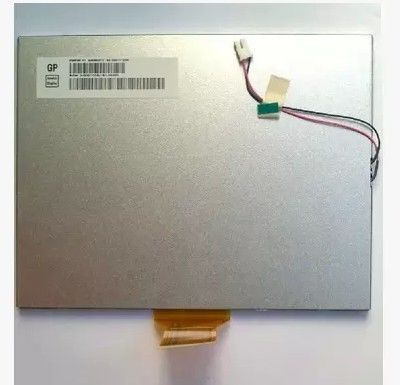

Large Image :  AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AT080MD01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT080MD01 BRAND: Mitsubishi
SIZE: 8INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 1000CD/M2 TEMPERATURE RANGE: Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C
Highlight:

QVGA 106PPI Lcd Display Panels

,

TFT LCD Panel LVDS

NEC NL6448AC33-15 Summary

NL6448AC33-15 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .






Mitsubishi AT080MD01 Application Details

Basic Detail :
Manufacturer

Model Name
AT080MD01
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.0 inch
Designed For
  •
Maximum Ratings :
OP Temperature
-40 ~ 85 °C
ST Temperature
-40 ~ 85 °C
RoHS

Vibration Level
6.8G (66.64 m/s²)



Mitsubishi AT080MD01 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0725×0.2175 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2175×0.2175 mm (H×V) [116PPI]
Mechanical Size :
Display Area
174×104.4 mm (H×V)
Bezel Area
177.4×107.8 mm (H×V)
Outline Dim.
192×122 mm (H×V)
Outline Depth
11.2 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
320g (Typ.)
Surface
Antiglare, Hard coating (3H)



Mitsubishi AT080MD01 Optical Details

Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
SWV, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
12/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
50% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-





Mitsubishi AT080MD01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
100K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-S6P-HFE
1.25 mm
6 pins
1 pcs

Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
370/470mA (Typ./Max.)



Mitsubishi AT080MD01 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
90/350mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20186-020E-11F
1.25 mm
20 pins
1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within24 hours

.AT080MD01 Mitsubishi 8INCH 800×480 RGB　1000CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
