AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY
AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

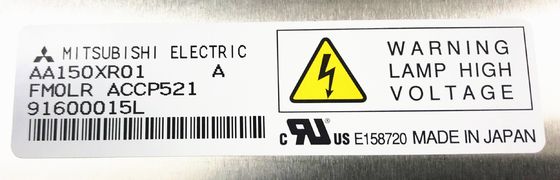

Large Image :  AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA150XR01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 210USD
Packaging Details: STANDARD PACKING
Delivery Time: 3DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 300PCS
Contact Now

AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AA150XR01 BRAND: Mitsubishi
SIZE: 15INCH RESOLUTION: 1024×768 RGB
BRIGHTNESS: 1500CD/M2 TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
Highlight:

QVGA 106PPI Lcd Display Panels

,

TFT LCD Panel LVDS

Mitsubishi AA150XR01 Application Details

Basic Information :
Brand
AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 0
Model
AA150XR01AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 1 1 Compatible
Type
a-Si TFT-LCD , LCM
Used For
  • AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 2
  • AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 3
Screen Size
15.0 inch
Alias
T-55335D150J-FW-A-AAN
Environment :
Storage Temp.
-20 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 4
Vibration
1.0G (9.8 m/s²)



Mitsubishi AA150XR01 Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
308.1(H) × 232.1(V)
Outline Dim.(mm)
326(H) × 267(V)
Depth(mm)
20.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (6-M3) on left, right bezel
Other Spec :
Weight
1.90Kgs (Typ.)
Treatment
Antiglare, Hard coating (3H)



Mitsubishi AA150XR01 Optical Details

Basic Information :
Luminance(cd/m²)
1500 (Typ.)
Contrast Ratio
650:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
6/19 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.30 (Max.)(5 points) AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 5
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-



Mitsubishi AA150XR01 Electronics Details

Frame Rate :
60Hz Reverse Scan :
Yes (180°)
Total Consumption:
25.5W (Typ.)



Mitsubishi AA150XR01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
410/700mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 7
HRS
DF14H-20P-1.25H(56)
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H



Mitsubishi AA150XR01 Backlight Details

Backlight Features :
Type
CCFL
Quantity
6 pcs
Position
Edge light type (Top and Bottom)
Replacement
Replaceable
Shape
Straight
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
620V (Typ.)
Current Supply
3.5/6.5/7.5mA (Min./Typ./Max.)
Frequency
40/70KHz (Min./Max.)
Startup Voltage
1300/1500/1650V (Min.)(Ta=+25/0/-20℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration AA150XR01 Mitsubishi 15INCH 1024×768 RGB 1500CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY 8
JST
BHR-03VS-1
4.0 mm
3 pins
2 pcs
BLL-3PINS-LLL
JST
BHR-03(6.0)VS-1
6.0 mm
3 pins
2 pcs
BLL-3PINS-HHH
Backlight Driver :
No
