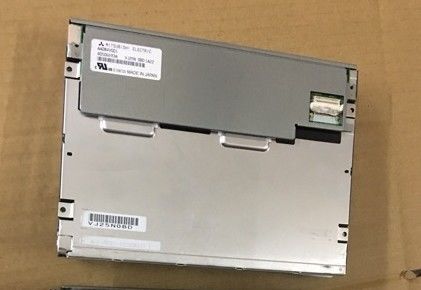

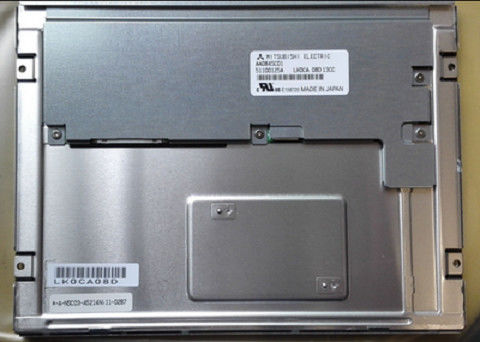

Product Details:
|
| MODEL NUMBER: | AA084VL01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 640×480 RGB |
| BRIGHTNESS: | 300CD/M2 | Signal Interface: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C | ||
| Highlight: | QVGA 106PPI Lcd Display Panels,TFT LCD Panel LVDS |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
 |
AA084VL01 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-30 ~ 80 °C | -30 ~ 80 °C | - |
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.089×0.267 mm | 0.267×0.267 mm [95PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.88×128.16 mm | 174.9×132.2 mm | 199.5×149 mm | 7.6/12.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 380g (Typ.) | - | Hard coating (2H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transflective | 200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/50/70 (Typ.)(CR≥10) |
4/16 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.30 (Max.)(5 points) |
||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 3.5W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 100K(Typ.) | 2 strings | 2 strings | Replaceable | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 30.0/36.6V (Typ./Max.) | 40/45mA (Typ./Max.) | 2.4W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-NNCAAC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 450/620mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9B-31P-1V | 1 pcs | 31 pins | 1.0 mm | ||
