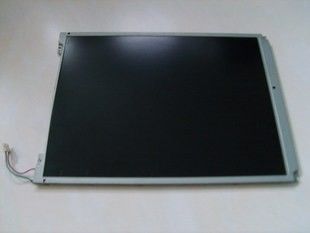

Product Details:
|
| MODEL NUMBER: | AA104SJ02 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 600CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | SVGA 82PPI TFT LCD Panel,WLED LVDS Industrial Lcd Panel |
||
| Basic Information : | Brand | Model 1 Compatible |
Type | Model Alias |
|---|---|---|---|---|
|
AA104SJ02 | a-Si TFT-LCD , LCM | T-51513D104J-LW-A-ANN | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-30 ~ 80 °C | -30 ~ 80 °C | - |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 230×180.2 mm | 9.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 450g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | SWV, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 12/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 97% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Power Consumption : | 7.6W (Typ.) | |
|---|---|---|
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 420mA (Typ.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
|
Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SEB20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 100K(Typ.) | No | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-S6P-HFE | 1 pcs | 1.25 mm | 6 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.54A (Typ.) | 12.0±1.2V | |||||
