AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

Certification
China Sapientia Display Co.,LIMITED certification
Customer Reviews
Dear Kay, We receive the product yesterday,your goods are superior in quality compared with other supplier. Thank you for your help. Best and Regards, Adam

—— Adam Davis

Thank you for your good service and product,hope our cooperation can be even more long-time and be happy!

—— Eric Wilson

I'm Online Chat Now

AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY
AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

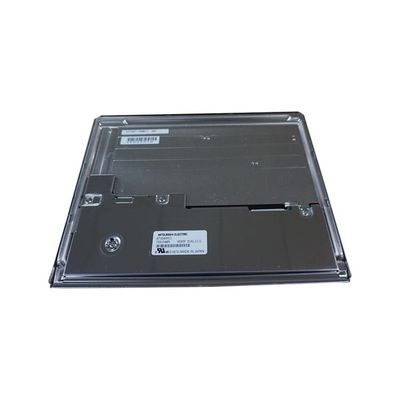

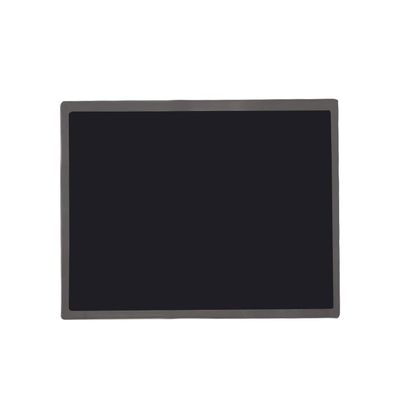

Large Image :  AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AT104XH11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD210
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS

AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT104XH11 BRAND: Mitsubishi
SIZE: 10.4INCH RESOLUTION: 1024×768 RGB
BRIGHTNESS: 1300CD/M2 TEMPERATURE RANGE: Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C
Lamp Type: WLED Signal Interface: LVDS
High Light:

SVGA 82PPI TFT LCD Panel

,

WLED LVDS Industrial Lcd Panel

Mitsubishi AT104XH11 Application Details

Basic Info :
Panel Brand
AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
Panel Model
AT104XH11
Diagonal Size
Application
  • AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 1
  • AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 2
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-40 ~ 85 °C
Storage Temp.
-40 ~ 85 °C
RoHS State
AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 3
Vibration Rating
6.8G (66.64 m/s²)


Mitsubishi AT104XH11 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.0685×0.2055 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2055×0.2055 mm (H×V) [123PPI]
Mechanical Size :
Display Area
210.4×157.8 mm (H×V)
Outline Dim.
215.4×161.8 mm (H×V)
Outline Dim.
230.2×180.2 mm (H×V)
Outline Depth
11.0 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
610g (Typ.)
Surface
Antiglare, Hard coating (3H)


Mitsubishi AT104XH11 Optical Details

Basic Information :
Brightness
1300 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
4/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.30 (Max.)(9 points) AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 4
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-


Mitsubishi AT104XH11 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)





Mitsubishi AT104XH11 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
100K(Typ.) Hours
Replacement
-
Lamp Shape
-
Position
Edge light type
Lamp Electrical :
Voltage Input
18.0/20.8V (Typ./Max.)
Current Input
120/130mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 6
JST
1.0 mm
10 pins
1 pcs
BLE-10PINS-NNCAACCAAC




Mitsubishi AT104XH11 Interface Details

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
400/630mA (Typ./Max.)
Consumption
1.32W (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AT104XH11 Mitsubishi 10.4INCH 1024×768 RGB 1300CD/M2 WLED LVDS Operating Temperature: -40 ~ 85 °C INDUSTRIAL LCD DISPLAY 7
I-PEX
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H



Panelook now have 5 datasheets of AT104XH11 released by Mitsubishi Electric Corporation (hereafter called Mitsubishi). According to datasheet with version of 20170215 which was released out on 2 15 2017, AT104XH11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 230.2(W)×180.2(H) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 610g (Typ.). As a TN, Normally White, Transmissive LCM product, AT104XH11 can provides 1300 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AT104XH11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
