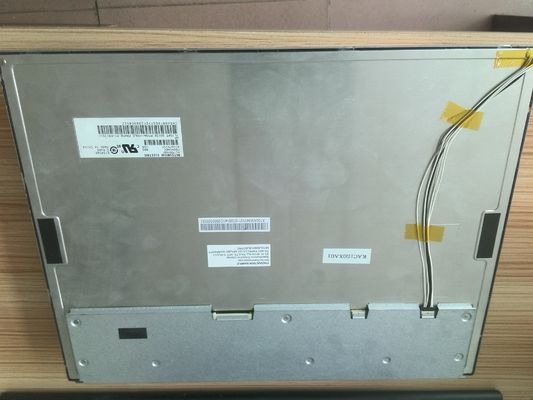

Product Details:
|
| MODEL NUMBER: | AC150XA01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768 RGB |
| BRIGHTNESS: | 450CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
| Highlight: | SVGA 82PPI TFT LCD Panel,WLED LVDS Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
AC150XA01 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
0 ~ 65 °C | -20 ~ 65 °C | - |
| Panel Size : | 15.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 304.128×228.096 mm | 307.4×231.3 mm | 326.5×253.5 mm | 12.0 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.05Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/70/70 (Typ.)(CR≥10) | 6 o'clock | 2/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 84% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 66% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | TBD |
||
| Frame Rate : | 60Hz Reverse Scan :
| No |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 480/800mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSB240420HD | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-015A | |
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 100K(Typ.) | No | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| CR03-P06H2B-2-E3500 | 1 pcs | 1.25 mm | 6 pins | |||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 600/700/850mA (Min./Typ./Max.) | 12.0±1.2V | 8.4/9.2W (Typ./Max | ||||
