Product Details:
|

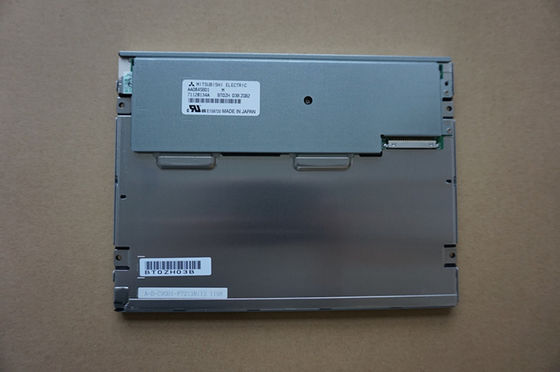

| MODEL NUMBER: | AA084SD11 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 8.4" | RESOLUTION: | 800(RGB)×600, SVGA, 119PPI |
| BRIGHTNESS: | 1200 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C |
| Highlight: | SVGA 82PPI TFT LCD Panel,WLED LVDS Industrial Lcd Panel |
||
| Basic Information : | Brand |  |
Model | AA084SD11 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 8.4" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | |
Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.071×0.213 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.213×0.213 (H×V) [119PPI] | |
| Mechanical Size : | Active Area(mm) | 170.4(H) × 127.8(V) | Bezel Area(mm) | 174.9(H) × 132.2(V) |
| Outline Dim.(mm) | 199.5(H) × 149(V) | Depth(mm) | 9.7 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 1200 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 4/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 54% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 6.6W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 350/540mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20186-020E-11F | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 strings | Life Time | 100K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 21.9/25.3V (Typ./Max.) | Current Supply | 125/135mA (Typ./Max.) | ||
| Consumption | 5.48W (Typ.) |
|||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-NNCAAC | |
