Product Details:
|

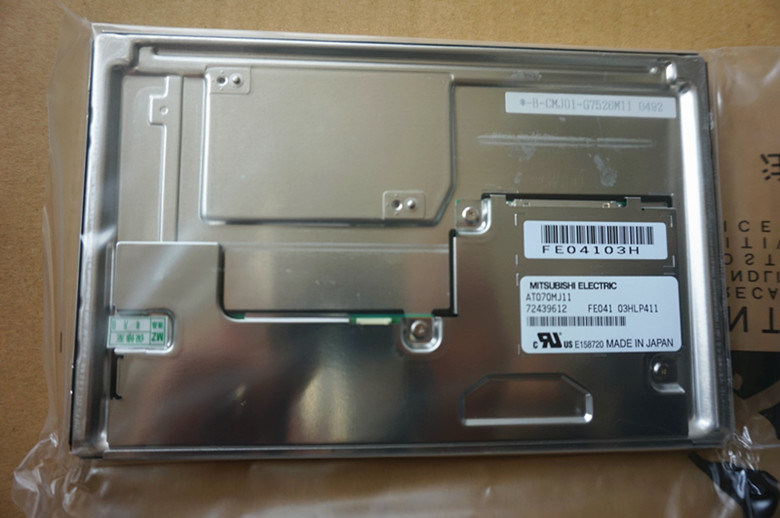

| MODEL NUMBER: | AT070MJ11 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 133PPI |
| BRIGHTNESS: | 1500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 M/s²) |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT070MJ11 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 85 °C | -40 ~ 85 °C | 6.8G (66.64 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 1500 (Typ.) | 80/80/60/80 (Typ.)(CR≥10) | 4/12 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 76% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.30 (Max.)(5 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 154.4(H) × 93.5(V) | 169.8(H) × 109.7(V) | 8.9±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 200g | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 6.8W |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2 strings | 2 strings | 100K(Typ.) | No | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 21.0/23.9V (Typ./Max.) | 110/120mA (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHLS-TF | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-NNCAAC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/450mA (Typ./Max.) | 0.99W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SEB20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×9.4(D) mm, viewing area size of 154.4(W)×93.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g. As a TN, Normally White, Transmissive LCM product, AT070MJ11 can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 54% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AT070MJ11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
