Product Details:
|

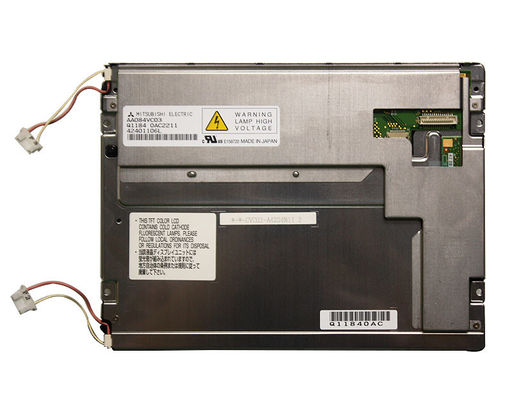

| MODEL NUMBER: | AA104VH01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480 RGB |
| BRIGHTNESS: | 800CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | SVGA 82PPI TFT LCD Panel,WLED LVDS Industrial Lcd Panel |
||
| Basic Information : | Brand Name | Model Name  1 Compatible |
Type | Model Alias |
|---|---|---|---|---|
|
AA104VH01 | a-Si TFT-LCD , LCM | T-55532D104J-LW-A-AAN | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-20 ~ 70 °C | -20 ~ 80 °C | - |
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 241×180.2 mm | 10.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 520g | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/65/65 (Typ.)(CR≥10) |
4/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 55% | 41% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.30 (Max.)(5 points) |
||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 100K(Typ.) | 2 strings | 2 strings | Replaceable | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 27.0/33.6V (Typ./Max.) | 80/90mA (Typ./Max.) | 4.32W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |
||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-NNCAAC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 250/430mA (Typ./Max.)(ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.8VCC; 2.0VCC≤VIH≤5.5VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | |
||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9B-31P-1V(32) | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-020A | |
