AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

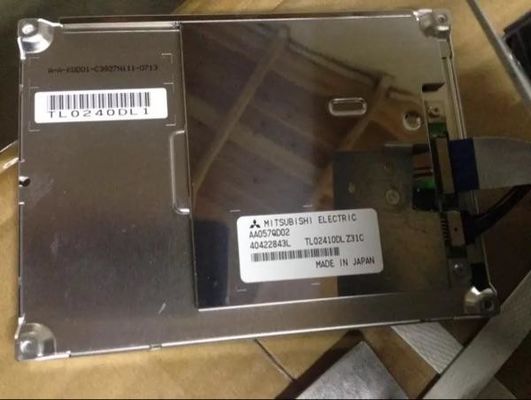

Large Image :  AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA057QD01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD95
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AA057QD01 BRAND: Mitsubishi
SIZE: 5.7INCH RESOLUTION: 320×240 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
Lamp Type: WLED Signal Interface: TTL
Highlight:

SVGA 82PPI TFT LCD Panel

,

WLED LVDS Industrial Lcd Panel



Mitsubishi AA057QD01 Summary

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA057QD01 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, WLED Backlight, Life ≥ 100K hours, With LED Driver, U/D,L/R Reverse , without NCM. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q2, 2010 and last shippment on Q2, 2022, Now this model is discontinued. There are 7 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Mar 26 2013 for the first time, and the latest update on Dec 19 2022. If you want to embed AA057QD01 LCM in your future product, Panelook strongly recommend that you should contact with Mitsubishi or it's distributor to learn lateast production and specification detail. The AA057QD01 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.

Mitsubishi AA057QD01 Application Details

Basic Information : Brand AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0 Model AA057QD01
Type LCM a-Si TFT-LCD Used For
  • AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
Screen Size 5.7" Alias -
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -30 ~~ 80 °C
RoHS AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2 Vibration 1.0G (9.8 m/s²)
Typical Features :
  • Wide Temperature
  • WLED Backlight
  • Life ≥ 100K hours
  • With LED Driver
  • U/D,L/R Reverse
Remarks : without NCM

Mitsubishi AA057QD01 Application Details

Basic Info :
Panel Brand
AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 8
Panel Model
AA057QD01
Diagonal Size
5.7"
Application
  • AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 9
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 10
Vibration Rating
1.0G (9.8 m/s²)


Mitsubishi AA057QD01 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Outline Dim.
119.2×90.4 mm (H×V)
Outline Dim.
144×104.6 mm (H×V)
Outline Depth
8.8±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting holes (4-Φ2.6)
Other Features :
Weight
165g (Typ.)
Surface
Clear, Hard coating (3H)


Mitsubishi AA057QD01 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
8/22 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.319
Color Numbers
262K (6-bit)
Color Temperature
6572K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


Mitsubishi AA057QD01 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
1.8W (Typ.)


Mitsubishi AA057QD01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
100K(Typ.) Hours
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 13
JAE
FI-S6P-HFE
1.25 mm
6 pins
1 pcs

Driver Electrical :
Voltage Input
5.0±0.5V
Current Input
300/400mA (Typ./Max.)


Mitsubishi AA057QD01 Interface Details

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
70/100mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration AA057QD01 Mitsubishi 5.7INCH 320×240 RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 14
Kyocera Elco
08-6260-033-340-829+
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



AA057QD01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×9.3(D) mm, viewing area size of 119.2(W)×90.4(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 165g (Typ.). As a TN, Normally White, Transmissive LCM product, AA057QD01 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8/22 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA057QD01 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.).
