Product Details:
|

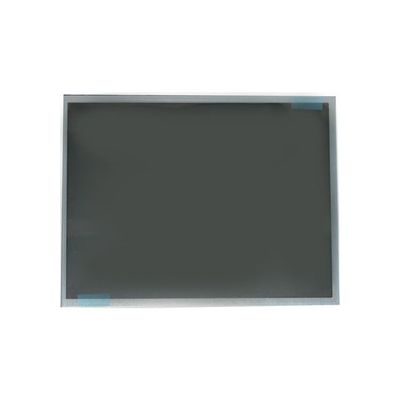

| MODEL NUMBER: | Aa121xn01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 12.1" | RESOLUTION: | 1024(RGB)×768, XGA, 105PPI |
| BRIGHTNESS: | 700 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Information : | Brand | Model | AA121XN01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.080×0.240 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.240×0.240 (H×V) [105PPI] | |
| Mechanical Size : | Active Area(mm) | 245.76(H) × 184.32(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 260.5(H) × 203(V) | Depth(mm) | 9.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight |
590g (Typ.)
|
Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 700 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 4/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 39% | sRGB | 55% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.3W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 400/720mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20186-020E-11F | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | - | Life Time | 100K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-S8P-HFE | 1 pcs | 8 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 420/510mA (Typ./Max.) | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 590g (Typ.). As a TN, Normally White, Transmissive LCM product, AA121XN01 can provides 700 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA121XN01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
