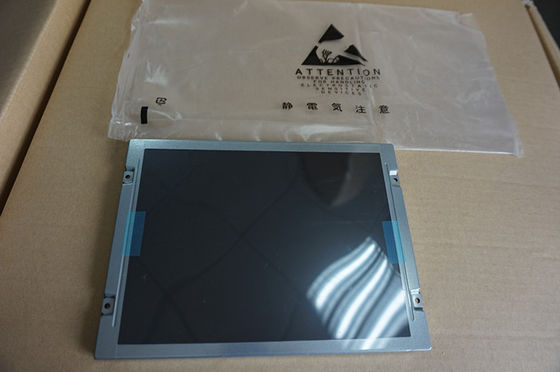

Product Details:
|
| MODEL NUMBER: | AA084XE01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 8.4 Inch | RESOLUTION: | 1024(RGB)×768 [XGA] 152PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C |
| High Light: | WLED FSTN LCD display,WLED Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | AA084XE01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 4/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0555×0.1665 mm | Pixel Pitch(W×H) | 0.1665×0.1665 mm [152PPI] | |
| Physical Size : | Active Viewing | 170.496(W)×127.872(H) mm | Overall Dim. | 199.5(W)×149(H) mm |
| Bezel Opening | 174.9(W)×132.2(H) mm | Overall Depth | 9.7±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Ф3.4) on left, right bezel | |||
| Other Detail : | Mass | 340g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.2W (Typ.) |
| Signal Electrical : | Input Current | 365/660mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SEB20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 100K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-S6P-HFE | 1 pcs | 1.25 mm | 6 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 250/300mA (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
