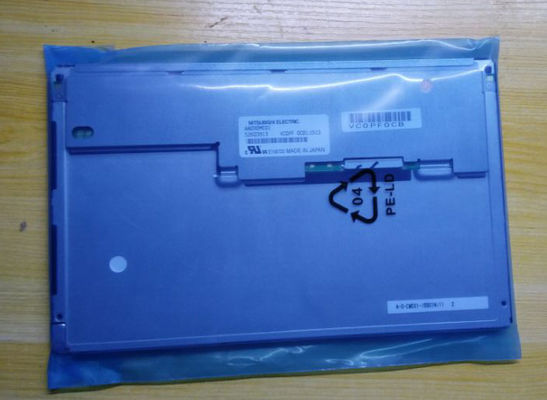

Product Details:
|
| MODEL NUMBER: | AA090ME01 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 8.4 Inch | RESOLUTION: | 1280(RGB)×800 (WXGA) 124PPI |
| BRIGHTNESS: | 400CDM2 | Lamp Type: | LVDS |
| Highlight: | SVGA 82PPI TFT LCD Panel,WLED LVDS Industrial Lcd Panel |
||
| Basic Detail : | Manufacturer |  |
Model Name | AA090ME01 1 Compatible |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | T-55561D090J-LW-A-AAN | |
| Panel Size | 9.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS | |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 12/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | SWV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.082×0.246 mm | Pixel Pitch(W×H) | 0.246×0.246 mm [103PPI] | |
| Physical Size : | Active Viewing | 196.8(W)×118.08(H) mm | Overall Dim. | 219(W)×136.2(H) mm |
| Bezel Opening | 199.4(W)×120.7(H) mm | Overall Depth | 7.0/10.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 320g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 5.1W (Typ.) |
| Signal Electrical : | Input Current | 250/410mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 7S2P | Life | 100K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 90/100mA (Typ./Max.) | Input Voltage | 24/30.2V (Typ./Max.) | ||
| Consumption | 4.32W (Typ.) |
|||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-NNCAAC | |
