8.4" LCM 1024x768 500CD/M2 Touch Lcd Display AA084XB01 LCD screen

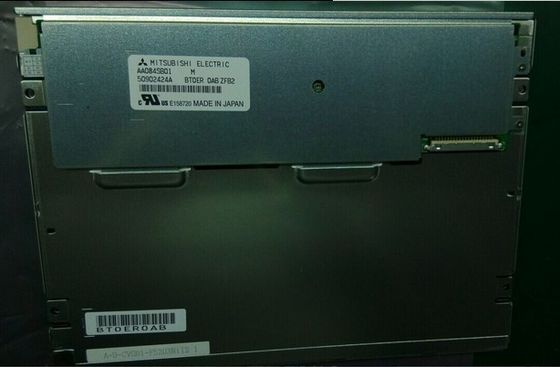

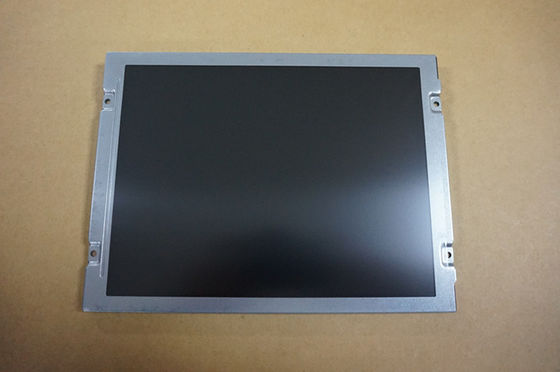

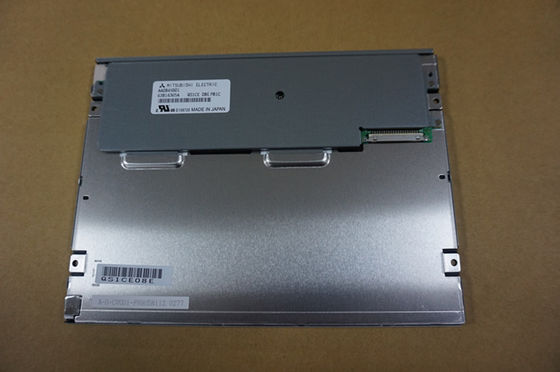

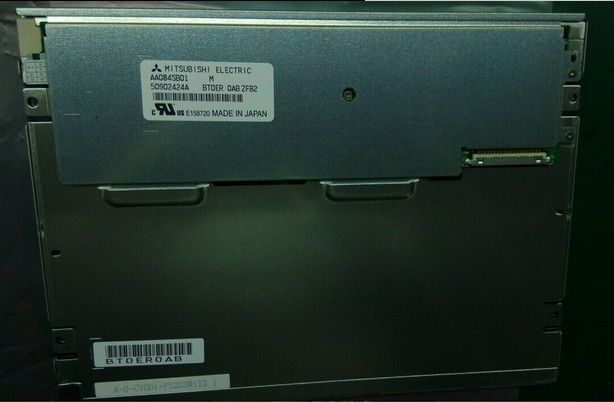

Large Image : 8.4" LCM 1024x768 500CD/M2 Touch Lcd Display AA084XB01 LCD screen

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA084XB01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD130
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	800PCS

Contact Now

8.4" LCM 1024x768 500CD/M2 Touch Lcd Display AA084XB01 LCD screen

Description

MODEL NUMBER:	AA084XB01	BRAND:	Mitsubishi
SIZE:	8.4 Inch	RESOLUTION:	6 O'clock
BRIGHTNESS:	500CD/M2	Lamp Type:	WLED [2 Strings] , 60K Hours , W/O Driver
Signal Interface:	LVDS (1 Ch, 6/8-bit) , 20 Pins Connector	EMPERATURE RANGE:	Operating Temperature: -30 ~ 80 °C
Highlight:	500CD/M2 Touch Lcd Display , 1024x768 Touch Lcd Display , 8.4" LCM Square Tft Display

Mitsubishi AA084XB01 Application Details

Basic Info :	Panel Brand Panel Model AA084XB01 1 Compatible Diagonal Size 8.4" Application Panel Type a-Si TFT-LCD , LCM Model Alias T-55549D084J-LW-A-AAN
Reliability :	Operating Temp. -30 ~ 80 °C Storage Temp. -30 ~ 80 °C RoHS State Vibration Rating 1.0G (9.8 m/s²)

Mitsubishi AA084XB01 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.0555×0.1665 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.1665×0.1665 mm (H×V) [152PPI]
Mechanical Size :	Display Area 170.496×127.872 mm (H×V) Bezel Area 174.9×132.2 mm (H×V) Outline Dim. 199.5×149 mm (H×V) Outline Depth 11.5 (Typ.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Face mounting holes (3-Φ3.4); Side mounting holes (4-M2)
Other Features :	Weight 370g (Typ.) Surface Antiglare, Hard coating (3H)

Mitsubishi AA084XB01 Optical Details

Basic Information :	Brightness 500 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 4/12(Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 8-bit) Color Temperature 6485K Uniformity 1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 40% sRGB 56% coverage Adobe RGB 42% coverage DCI-P3 42% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA084XB01 Electronics Details

Frame Frequency :	60Hz Reverse Scan :	Yes (180°)
Power Consumption :	4.9W (Typ.)

Mitsubishi AA084XB01 Backlight Details

Back-light Features :	Lamp Type WLED Amount 2 strings Life Time 60K(Min.) (Hours) Replacement Replaceable Lamp Shape 2 strings Position Edge light type (Bottom side)
Lamp Electrical :	Voltage Input 30/36.5V (Typ./Max.) Current Input 60/70mA (Typ./Max.) Consumption 3.6W (Typ.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM06B-SHLS-TF(LF)(SN) 1.0 mm 6 pins 1 pcs BLE-6PINS-NNCAAC

Mitsubishi AA084XB01 Interface Detail

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 380/650mA (Typ./Max.) Consumption 1.25W (Typ.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration I-PEX 20186-020E-11F 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010H
