Product Details:
|

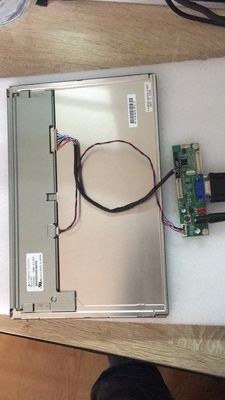

| MODEL NUMBER: | AA121TD02 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 12.1 Inch | RESOLUTION: | 1280(RGB)×800 (WXGA) 124PPI |
| BRIGHTNESS: | 450 Cd/m² (Typ. | Lamp Type: | LCM, A-Si TFT-LCD |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , Connector 20 Pins | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Highlight: | TFT LCD Panel 450CD/M2,AA121TD02 TFT LCD Panel,12.1" LCM TFT LCD Screen |
||
| Basic Info : | Panel Brand |  |
Panel Model | AA121TD02 |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | |
Vibration Rating | 1.0G (9.8 m/s² |
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | 263.52×165.60 mm (H×V) |
| Outline Dim. | 283×185.1 mm (H×V) | Outline Depth | 9.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 620g (Typ.) | Surface |
Antiglare, Hard coating (3H
|
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 4/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 55% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 9.4W (Typ.) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 100K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | No | Amount | - | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-S6P-HFE | 1.25 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 650/890mA (Typ./Max.) | ||
| Consumption | 7.8W (Typ.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 650/890mA (Typ./Max.) | ||
| Consumption | 2.15W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20186-020E-11F | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H | |
