Product Details:
|

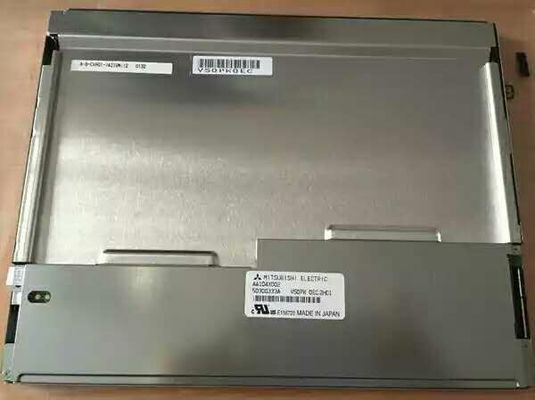

| MODEL NUMBER: | AA104XD02 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 10.4inch | RESOLUTION: | 1024(RGB)×768, XGA, 123PPI |
| BRIGHTNESS: | 600 Cd/m² (Typ.) | Lamp Type Lamp Type: | 2 Strings WLED , 100K Hours , Without Driver |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | 600cd/M2 LCM TFT Panel,10.4" 1024x768 LCD TFT Panel,AA104XD02 Tft Lcd Display |
||
| Basic Information : | Manufacturer | Panel Model 1 Compatible |
Panel Type | Alias |
|---|---|---|---|---|
|
AA104XD02 | a-Si TFT-LCD , LCM | T-55533D104J-LW-A-AAN | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
|
-30 ~ 80 °C | -30 ~ 80 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/65/65 (Typ.)(CR≥10) | 4/12 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 54% | 41% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 40% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.30 (Max.)(5 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.2055×0.2055 [123PPI] | 0.0685×0.2055 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 210.4(H) × 157.8(V) | 215.4(H) × 161.8(V) | 230(H) × 180.2(V) | 10.5±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 520g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (180°) | |
|---|---|---|
| Vertical Frequency : | 60Hz Power Consumption :
| 5.2W (Typ.) |
| Lamp Features: | Type | Position | Quantity |
Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 2 strings | 2 strings | 100K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
|||
| 27/33.3V (Typ./Max.) | 70/80mA (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-NNCAAC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 440/800mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 10 pcs / box | 7.0 Kgs | 457×302×422 mm (L×W×H) |
