Product Details:
|
| Size: | 8.4 Inch | Resolution: | 800(RGB)×600 (SVGA) 119PPI |
|---|---|---|---|
| Panel Type: | LCM, LTPS TFT-LCD | Pixel Format: | RGB Vertical Stripe |
| Brightness: | 400cd/m² (Typ.) | Contrast Ratio: | 450 : 1 (Typ.) (TM) |
| Viewing Angle: | 60/60/50/50 (Typ.)(CR≥10) | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Voltage Supply: | 3.3V (Typ.) | Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver |
| Highlight: | 400cd/m2 LTPS TFT LCD Panel,8.4" LTPS TFT LCD Panel,LTA084C270F |
||

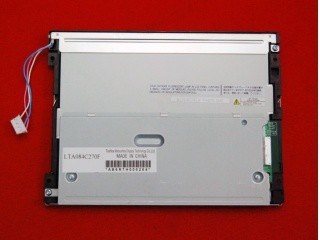

8.4 Inch LTA084C270F LTPS TFT LCD Panel LVDS Connector 20 pins
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria.
2. Toshiba Matsushita LTA084C270F Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 60/60/50/50 (Typ.)(CR≥10) | 8/17 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 450 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) |
3. Toshiba Matsushita LTA084C270F Mechanical Features:
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.213×0.213 [119PPI] | 0.071×0.213 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.4(H) × 127.8(V) | 174.8(H) × 132.2(V) | 199.5(H) × 149.5(V) | 12.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Mounting : | Face mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 460g (Typ.) | - | - | ||
4. Toshiba Matsushita LTA084C270F Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 2 pcs | Straight | 50K(Typ.) | Replaceable | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 430V (Typ.) | 3.0/6.5mA (Min./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 1300V (Min.)(Ta=0℃) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
