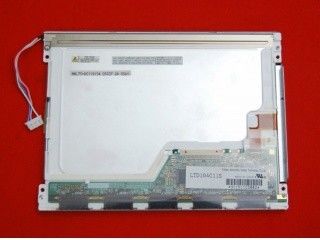

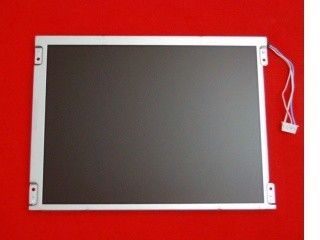

Product Details:
|
| Size: | 10.4 Inch | Screen Type: | LCM, A-Si TFT-LCD |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Response: | 10/20 (Typ.)(Tr/Td) Ms | Backlight: | 2 Pcs CCFL , 50K Hours , No Driver |
| Signal Type: | CMOS (1 Ch, 6-bit) , 32 Pins Connector | Max. Ratings: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 65 °C |
| High Light: | VGA 76PPI TFT LCD Panel,400cd/m² TFT LCD Panel,LTD104C11S |
||
1. HIGHEST QUALITY STANDARD DISPLAYS:
| Pixel Features | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.110×0.330 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 214.6×161.8 mm (H×V) |
| Outline Dim. | 238.5×177.5 mm (H×V) | Outline Depth | 11.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features | Weight | 500g (Typ.) | Surface | - |

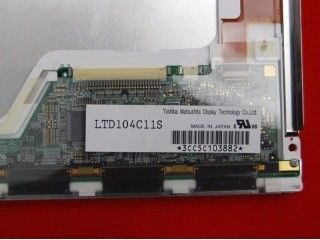

3. Toshiba Matsushita LTD104C11S Optical Details:
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 10/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
4. Toshiba Matsushita LTD104C11S Backlight Details:
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 460V (Typ.) | Current Input | 3.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | - | Kick-off Voltage | 1200V (Min.)(Ta=-10℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
