7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15

7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15
7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15 7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15

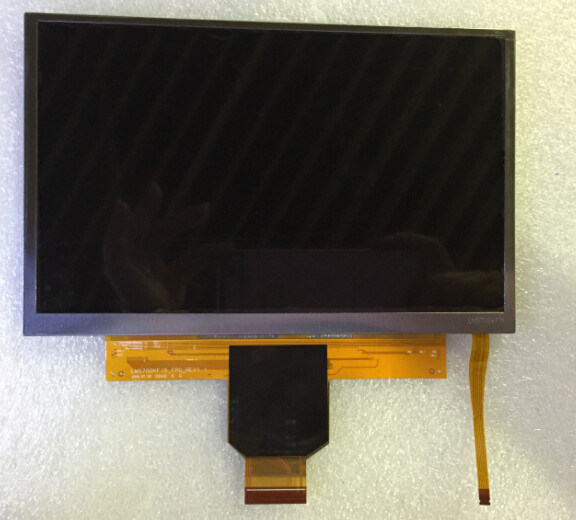

Large Image :  7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15

Product Details:
Place of Origin: Korea
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS700KF15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Size (L×W×H): 565×345×375 mm Amount:13 pcs / box
Delivery Time: 1-3 Working Day
Payment Terms: TT / Escrow 10 / Paypal / WesternUnion
Supply Ability: 500PCS

7" 133PPI 350cd/m² Automotive TFT LCD Display LMS700KF15

Size: 7 Inch Resolution: 800(RGB)×480, WVGA, 133PPI
Panel Type: A-Si TFT-LCD , LCM Pixel Format: RGB Vertical Stripe
Brightness: 350cd/m² (Typ.) Contrast Ratio: 700:1 (Typ.) (TM)
Viewing Angle: 70/70/70/70 (Typ.)(CR≥10) Best View On: 6 O'clock
Display Colors: 16.2M 50% NTSC Environment: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C
High Light:

350cd/m² Automotive TFT LCD Displa


133PPI Automotive TFT LCD Displa





As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.


Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.


2.SAMSUNG LMS700KF15 Mechanical Details:

Pixel Features  Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.0635×0.1905 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1905×0.1905 (H×V) [133PPI]
Mechanical Size : Active Area(mm) 152.4(H) × 91.44(V) Bezel Area(mm) 154.95(H) × 93.89(V)
Outline Dim.(mm) 163.2(H) × 104(V) Depth(mm) 3.4±0.2
Outline Features : Form Style Flat Rectangle Outline Shape -
Aspect Ratio 15:9 (H:V) Orientation Landscape type
Mounting : Without
Other Spec : Weight 110g (Typ.) Treatment -


3. SAMSUNG LMS700KF15 Optical Details:

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
Viewing Angle 70/70/70/70 (Typ.)(CR≥10)  Display Mode TN, Normally White, TMR
Best View on 6 o'clock Response(ms) 16 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.316; Y:0.335 Display Colors 16.2M (6-bit + FRC)
Color Temperature 6287K White Uniformity 1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 50% sRGB 68% coverage
Adobe RGB 52% coverage DCI-P3 52% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -


4. SAMSUNG LMS700KF15 Interface Details:

Signal Electrical  Voltage Supply 3.3V (Typ.)(VCC) Current Supply -
Consumption 0.65/0.85W (Typ./Max.)
Signal Type : Parallel RGB (1 ch, 8-bit) Signal Voltage -
Interface Features : Position - Type FPC
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
    1 pcs 40 pins 0.5 mm DRGB-40P1C8B-050C


5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.


Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
