Product Details:
|
| Size: | 15 Inch | Resolution: | 1024*768 |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Viewing Angle: | 75/75/50/60 (Typ.)(CR≥10) |
| Best View On: | 6 O'clock | Display Colors: | 262K/16.7M 50% NTSC |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver |
| Display Mode: | TN, Normally White, Transmissive | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| High Light: | AA150XN07,15 Inch Industrial TFT Display,LCD Industrial TFT Display |
||
15 Inch 4 Pcs CCFL TFT LCD AA150XN07 50K hours Without Driver
1. Main Information:

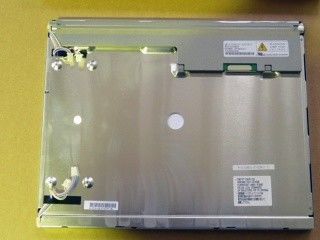

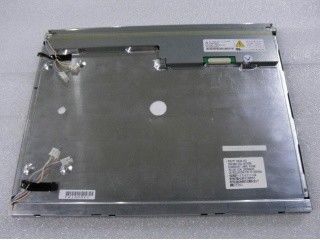

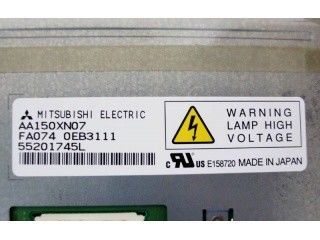

AA150XN07 is a 15.0" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²).
It's general features are following: Lamp Repaceable, Life ≥ 50K hours, Upside I/F, 180° Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Industrial etc.
2. Mitsubishi AA150XN07 Mechanical Features:
| Panel Size | 15 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 304.128×228.096 mm | 308.1×232.1 mm | 326×255 mm | 16.6±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.38Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
3. Mitsubishi AA150XN07 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 75/75/50/60 (Typ.)(CR≥10) | 6 o'clock | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.30 (Max.)(5 points) | ||
4. Mitsubishi AA150XN07 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 4 pcs | 50K(Min.) | Replaceable | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.5/6.5/8.0mA (Min./Typ./Max.) | 620V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1300/1500/1650V (Min.)(Ta=+25/0/-20℃) | 40/70KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 2 pcs | 3.5 mm | 2 pins | BLL-2PINS-HH | |
| JST | BHR-02VS-1 | 2 pcs | 4.0 mm | 2 pins | BLL-2PINS-LL | |
