Product Details:
|
| Size: | 3.8 Inch | Resolution: | 320*240 |
|---|---|---|---|
| Brightness: | 110 Cd/m² (Typ.) | Viewing Angle: | 80 (Typ.)(CR≥2, Φ2-Φ1) |
| Best View On: | 6 O'clock | Display Colors: | Monochrome |
| Signal Interface: | Parallel Data (4-bit) , 20 Pins FPC | Contrast Ratio: | 20:1 (Typ.) (TM) |
| Display Mode: | STN, Black/White (Negative), Transmissive [Panelook Copyright, Copy Is Strictly Prohibited] IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA | Lamp Type: | 1S6P WLED , Without Driver |
| Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | Monochrome Industrial TFT Display,SP10Q010,3.8 Inch Industrial TFT Display |
||
1. Main Information:

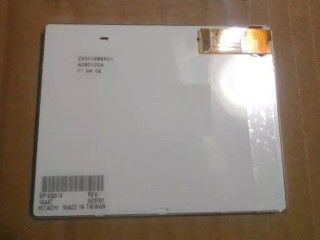

SP10Q010 is a 3.8" diagonal FSTN-LCD display panel product from Kaohsiung Opto-Electronics Inc. with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²).
It's general features are following: WLED Backlight, Glossy . Based on its features, this model be applied to Industrial etc.
2. KOE SP10Q010 Mechanical Details:
| Pixel Features : | Pixel Format | 320×240 [QVGA] | Dot Pitch | 0.240×0.240 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.240×0.240 mm (H×V) [105PPI] | |
| Mechanical Size : | Display Area | 76.79×57.59 mm (H×V) | Bezel Area | 81.8×63.0 mm (H×V) |
| Outline Dim. | 94.7×73.3 mm (H×V) | Outline Depth | 5.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Other Features : | Weight | - | Surface | Glare (Haze 0%) |
3. KOE SP10Q010 Optical Details:
| Basic Information : | Brightness | 110 cd/m² (Typ.) | Contrast Ratio | 20:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80 (Typ.)(CR≥2, Φ2-Φ1) | Optical Mode | STN, Black/White (Negative), Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 150/350 (Typ.)(Tr/Td) (ms) | |
| Color Performance | Chromaticity | - | Color Numbers | Monochrome |
4. KOE SP10Q010 Backlight Details:
| Back-light Features: | Lamp Shape | Parallel | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1S6P | Position | Edge light type | |
| Lamp Electrical | Voltage Input | 5.0/5.2V (Typ./Max.) | Current Input | 42/51mA (Typ./Max.) | ||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
