Product Details:
|
| Size: | 15.6 Inch | Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10 |
| Support Color: | 16.7M 72% NTSC | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Treatment: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Light Source: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | G156HTN02.0,1920*1080 Industrial TFT Display,15.6 Inch Industrial TFT Display |
||
15.6 Inch 1920*1080 Life ≥ 50K hours G156HTN02.0 With LED Driver Designed For Industrial
1. Main Information:

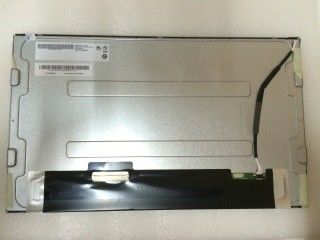

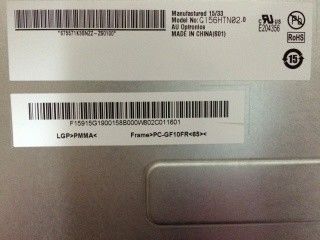

G156HTN02.0 is a 15.6" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, With LED Driver, Reverse I/F, Matte .
Based on its features,this model be applied to Industrial etc.
2. AUO G156HTN02.0 Mechanical Details:
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 359.5(H) × 224.3(V) | Depth(mm) | 3.55 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Spec | Weight | 400g (Max.) | Treatment | Antiglare (Haze 25%) |
3. AUO G156HTN02.0 Optical Details:
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 6/3 (Typ.)(Tr/Td) | |
| Color Performance | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 79% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G156HTN02.0 Backlight Details:
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
